2004 Scooter YP400 - YP400 (5RU1) [040] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

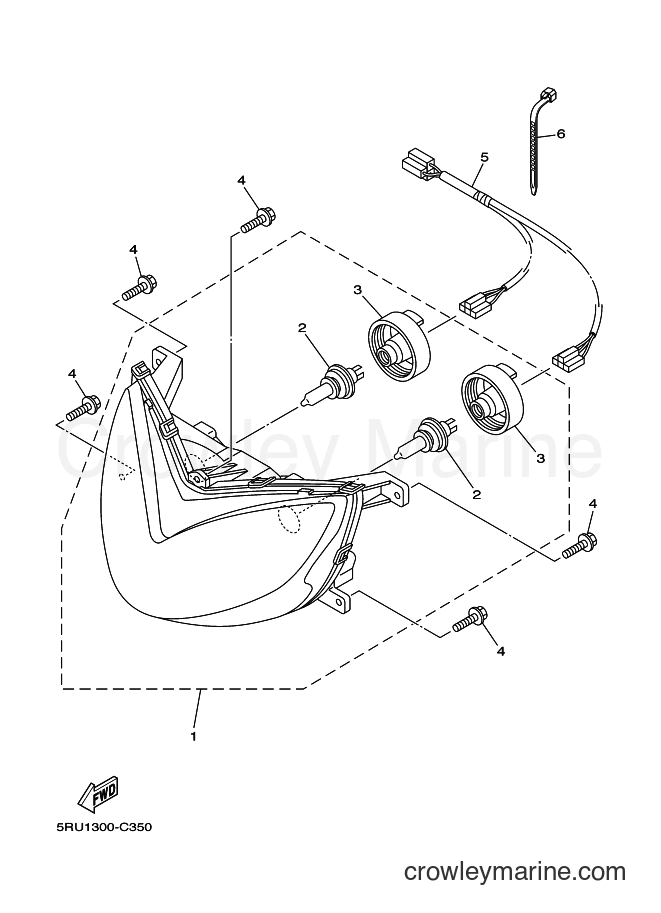

Yamaha Motors YP400 (5RU1) [040] - HEADLIGHT

Change View:

Required: 1

HEADLIGHT ASSY

Price unavailable

Yamaha Motors

Headlight Bulb8V0-84314-10-00

Required: 2

. BULB (12V-60/55W)

Supersedes: 2F9-84314-00-00

In stock

Only 1 remaining

~~$75.99~~

$64.59

You save $11.40

More details

Yamaha Motors

SOCKET COVER5JW-84397-00-00

Required: 2

. COVER, SOCKET

~~$32.99~~

$28.04

You save $4.95

More details

Yamaha Motors

90119-06060-0090119-06052-00

Required: 5

BOLT, WITH WASHER

~~$2.65~~

$2.25

You save $0.40

More details

Yamaha Motors

HEADLIGHT CORD5RU-84359-00-00

Required: 1

CORD, HEADLIGHT

~~$32.99~~

$28.04

You save $4.95

CLAMP

Supersedes: 90464-13073-00

~~$4.41~~

$3.75

You save $0.66

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders
