2004 Scooter YH50 - YH50 (5UB3) [080] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

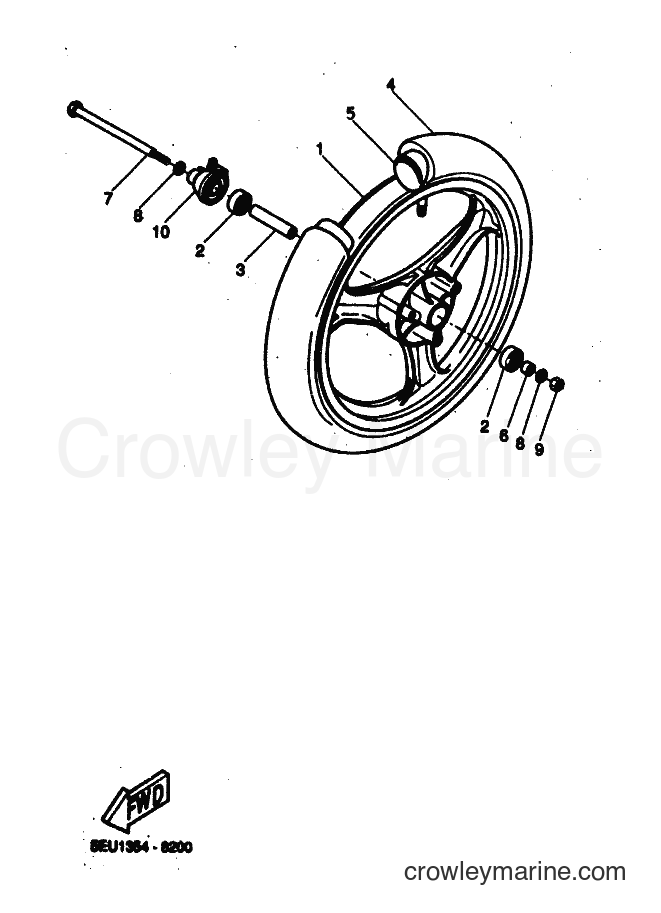

Yamaha Motors YH50 (5UB3) [080] - FRONT WHEEL
Change View:
1
Required: 1
CAST WHEEL, FRONT
Price unavailable
2
Required: 2
. BEARING
Price unavailable
3
Required: 1
. SPACER, BEARING
Price unavailable
4
Required: 1
TIRE 2 1/2-16 M29S MICHELIN
Price unavailable
5
Required: 1
TUBE (70/90-16)
Price unavailable
6
Required: 1
SPACER
Price unavailable
7
Required: 1
AXLE, WHEEL
Price unavailable
8
Required: 2
WASHER, WHEEL
Price unavailable
9
Required: 1
NUT, AXLE
Price unavailable
10
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
