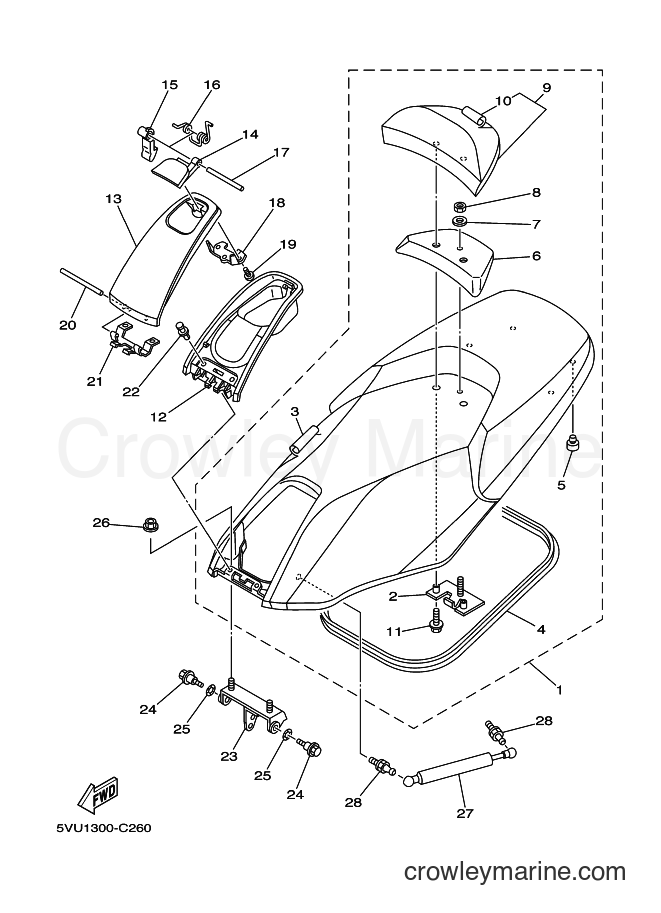

2004 Scooter XP500 - XP500 (5VU1) [020] SEAT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP500 (5VU1) [020] - SEAT
Change View:
1
Required: 1
DOUBLE SEAT ASSY
Price unavailable
2
Required: 1
. BRACKET, SEAT
Price unavailable
3
Required: 1
. SEAT COVER COMP.
Price unavailable
4
Required: 1
. SEAL
Price unavailable
5
Required: 4
. PAD, SEAT
Price unavailable
6
Required: 1
. PLATE
Price unavailable
Plate Washer
7
Yamaha Motors
Plate Washer90201-06380-00
Required: 1
. WASHER PLAIN
Cross Ship
Leaves in 2-5 days
$0.65
$0.55
You save $0.10
More details
95604-06200-00
8
Yamaha Motors
95604-06200-0095607-06200-00
Required: 1
. NUT, SELF U-FLANGE
Cross Ship
Leaves in 2-5 days
$13.49
$11.47
You save $2.02
More details
9
Required: 1
. SEAT BACK ASSY
Price unavailable
10
Required: 1
. . SEAT COVER ASSY
Price unavailable
12
Required: 1
COVER, SEAT COMP.
Price unavailable
13
Required: 1
LID 1
Price unavailable
14
Required: 1
LEVER, SEAT
Price unavailable
Seat Hook
15
Yamaha Motors
Seat Hook5GJ-24754-00-00
Required: 1
HOOK, SEAT
Cross Ship
Leaves in 2-5 days
$1.85
$1.57
You save $0.28
More details
Spring
16
Yamaha Motors
Spring4HC-24758-00-00
Required: 1
SPRING
Cross Ship
Leaves in 2-5 days
$3.75
$3.19
You save $0.56
More details
Dowel Pin (4HC)
17
Yamaha Motors
Dowel Pin (4HC)93603-50195-00
Required: 1
PIN, DOWEL
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
18
Required: 1
COVER
Price unavailable
19
Required: 2
SCREW, TAPPING
Price unavailable
PIN
20
Yamaha Motors
PIN5GJ-24774-00-00
Required: 1
PIN
Cross Ship
Leaves in 2-5 days
$4.55
$3.87
You save $0.68
More details
21
Required: 1
REINFORCEMENT
Price unavailable
Rivet
22
Yamaha Motors
Rivet90269-07076-00
Required: 3
RIVET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
23
Required: 1
HINGE 1
Price unavailable
Bolt
24
Yamaha Motors
Bolt90109-063F5-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Wave Washer
25
Yamaha Motors
Wave Washer90206-10036-00
Required: 2
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Flange Nut
26
Yamaha Motors
Flange Nut95707-08500-00
Required: 2
NUT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
27
Required: 1
STOPPER
Price unavailable
28
Required: 2
ARM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
