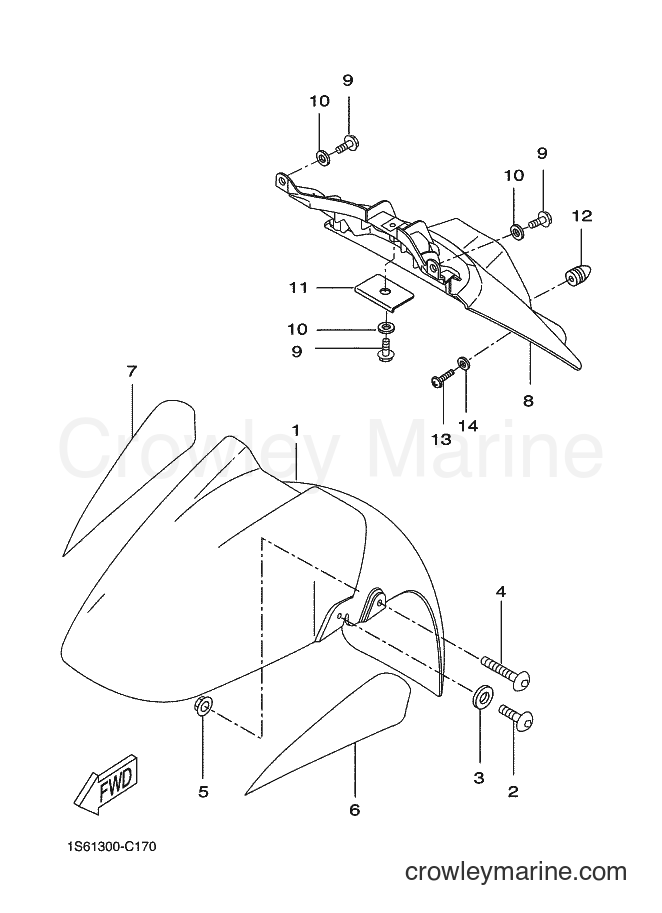

2004 Street Bike VP300 - VP300 (1S61) [100] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors VP300 (1S61) [100] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
3
Required: 2
WASHER, PLATE
Price unavailable
4
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
Nut
5
Yamaha Motors
Nut90179-06X00-00
Required: 2
NUT
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
6
Required: 1
GRAPHIC 1
Price unavailable
7
Required: 1
GRAPHIC 2
Price unavailable
8
Required: 1
GUARD, FLAP
Price unavailable
Flange Bolt
9
Yamaha Motors
Flange Bolt95817-06016-00
Required: 3
BOLT, FLANGE
Supersedes: 90105-06X00-00
Cross Ship
Leaves in 2-5 days
$1.95
$1.56
You save $0.39
More details
10
Required: 3
WASHER, PLATE
Price unavailable
11
Required: 1
WASHER, SPECIAL
Price unavailable
Damper
12
Yamaha Motors
Damper5A8-21639-00-00
Required: 1
DAMPER 2
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Tapping Screw
13
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
14
Required: 1
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
