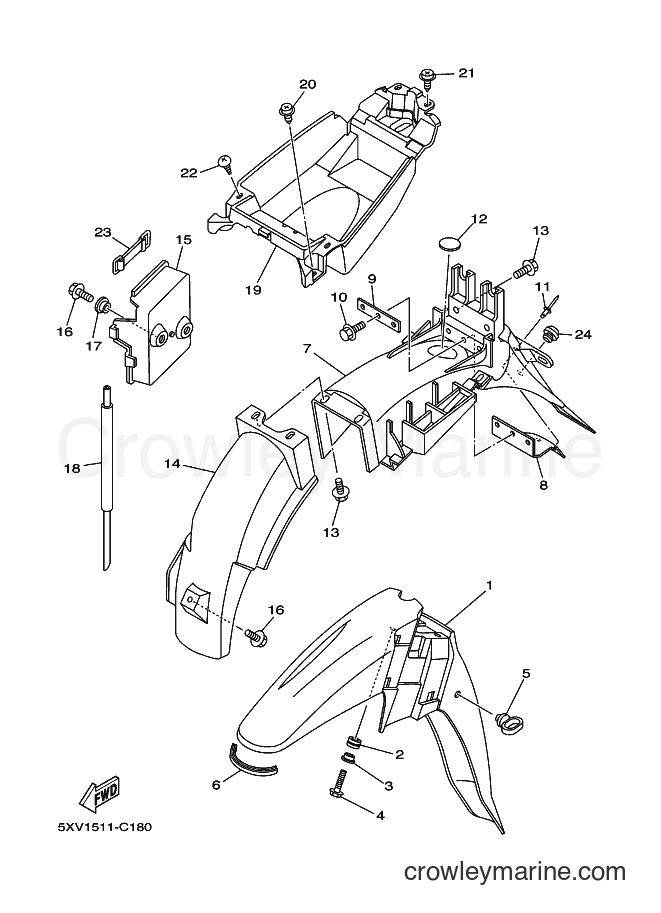

2004 Scooter T110 - T110 (5XV1) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T110 (5XV1) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
COLLAR
3
Yamaha Motors
COLLAR90387-06737-00
Required: 3
COLLAR
Supersedes: 90387-068J7-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
4
Required: 3
BOLT, WITH WASHER
Price unavailable
5
Required: 1
HOLDER, CABLE
Price unavailable
6
Required: 1
MOLE 1
Price unavailable
7
Required: 1
FENDER, REAR
Price unavailable
8
Required: 1
BRACKET, FENDER
Price unavailable
9
Required: 1
STAY, PLATE
Price unavailable
BLIND RIVET
11
Yamaha Motors
BLIND RIVET90267-48086-00
Required: 2
RIVET, BLIND
Cross Ship
Leaves in 2-5 days
$4.90
$4.17
You save $0.74
More details
12
Required: 1
COVER 2
Price unavailable
Bolt with Washer
13
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 4
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
14
Required: 1
GUARD, FLAP
Price unavailable
15
Required: 1
BOX, BATTERY
Price unavailable
Bolt with Washer
16
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 3
BOLT, WITH WASHER
Supersedes: 90119-06044-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
17
Required: 2
COLLAR
Price unavailable
18
Required: 1
HOSE (L350)
Price unavailable
19
Required: 1
BOX
Price unavailable
20
Required: 2
SCREW, WITH WASHER
Price unavailable
Screw with Washer
21
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Truss Screw
22
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 1
BAND ASSY
Price unavailable
24
Required: 1
DAMPER 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
