2004 Scooter T105SE - T105SE (5LM4) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

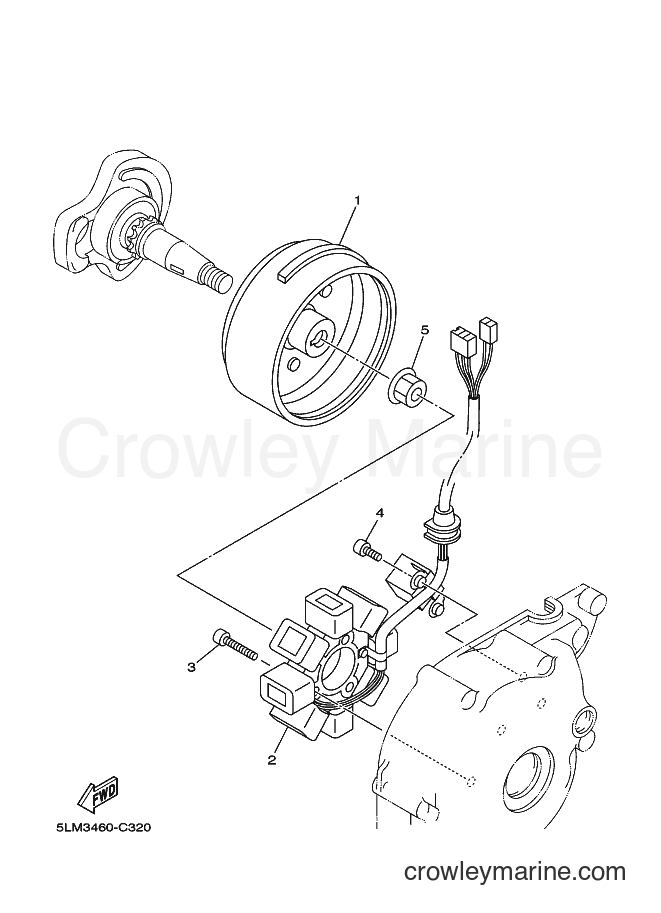

Yamaha Motors T105SE (5LM4) [010] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
BOLT
4
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Nut (3GG)
5
Yamaha Motors
Nut (3GG)90179-12588-00
Required: 1
NUT, FLANGE
Supersedes: 95707-12500-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
