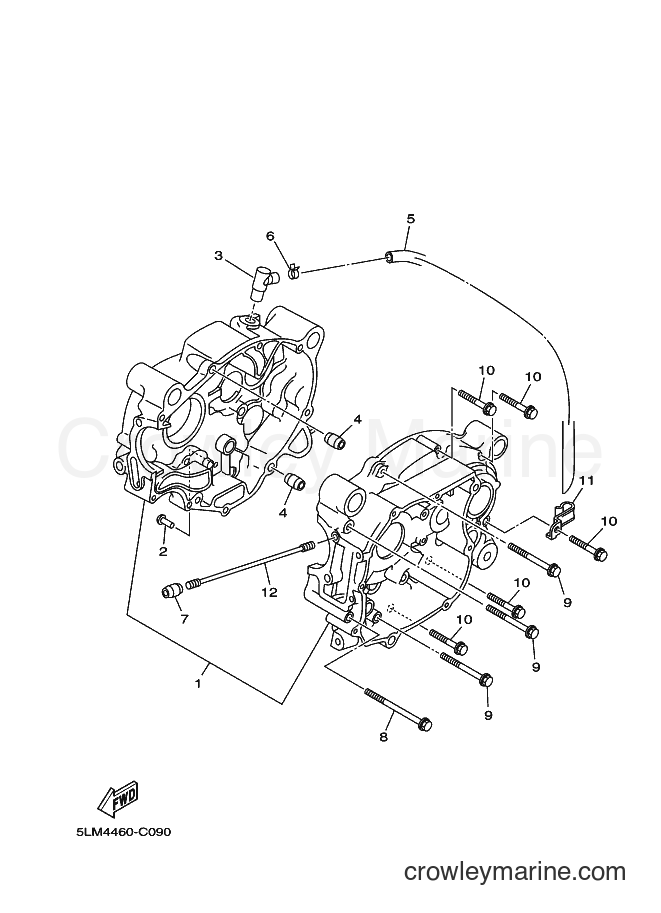

2004 Scooter T105SE - T105SE (5LM3) [010] CRANKCASE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105SE (5LM3) [010] - CRANKCASE
Change View:
1
Required: 1
CRANKCASE ASSY
Price unavailable
SPRING HOOK
2
Yamaha Motors
SPRING HOOK132-16346-00-00
Required: 1
HOOK, SPRING
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
3
Required: 1
BREATHER
Price unavailable
5
Required: 1
PIPE, BREATHER 1
Price unavailable
Clip (3YX)
6
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
CLIP
Supersedes: 90467-13064-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Small Bolt Flange
8
Yamaha Motors
Small Bolt Flange95027-06080-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
Small Bolt Flange
9
Yamaha Motors
Small Bolt Flange95027-06060-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Small Flange Bolt
10
Yamaha Motors
Small Flange Bolt95027-06040-00
Required: 5
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
11
Required: 1
CLAMP
Price unavailable
12
Required: 4
BOLT, STUD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
