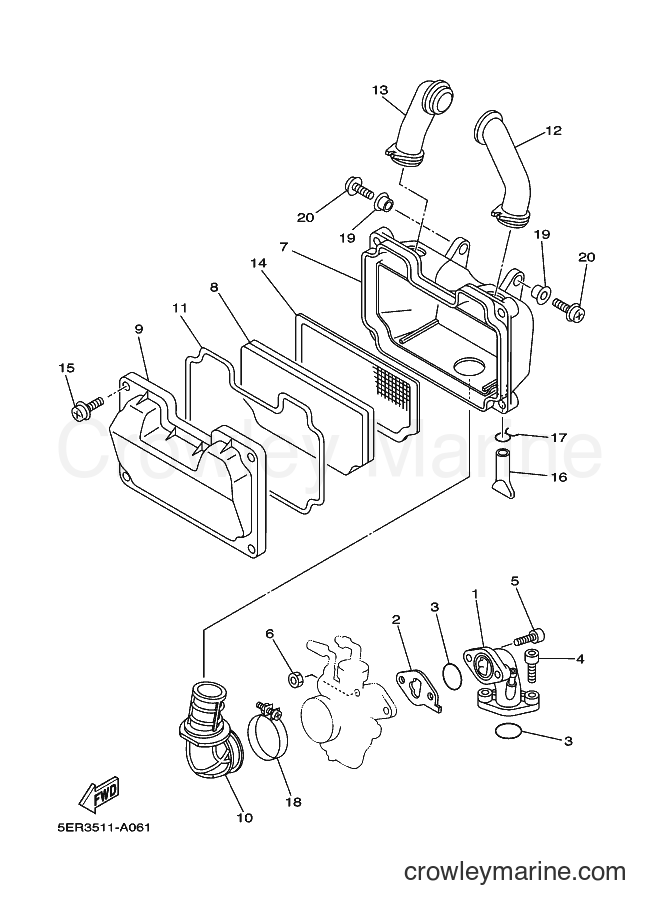

2004 Scooter T105SE - T105SE (5ER7) [010] INTAKE diagram
![Yamaha Motors T105SE (5ER7) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/uwkOc5o4.png)
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
JOINT
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Yamaha Motors
O-Ring93210-25552-00
Required: 2
O-RING
Supersedes: 93210-258G2-00
In stock
5+ in stock
$12.32
You save $2.17
In stock
Only 1 remaining
$2.25
You save $0.40
In stock
Only 1 remaining
$2.25
You save $0.40
$8.07
You save $1.42
7
Required: 1
CASE, AIR CLEANER 1
Price unavailable
8
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
9
Required: 1
CAP, CLEANER CASE 1
Price unavailable
10
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 1
PIPE, SUCTION 1
Price unavailable
13
Required: 1
PIPE, SUCTION 2
Price unavailable
14
Required: 1
PLATE, ELEMENT
Price unavailable
15
Yamaha Motors
Screw With Washer97607-05230-00
Required: 4
SCREW,WITH WASHER
$8.07
You save $1.42
16
Yamaha Motors
DRAIN PIPE34X-1443E-00-00
Required: 1
PIPE, DRAIN
Supersedes: 4ST-E443E-00-00
$7.22
You save $1.27
$3.44
You save $0.61
18
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-43053-00
$18.69
You save $3.30
19
Required: 2
COLLAR
Price unavailable
20
Yamaha Motors
PAN HEAD SCREW97607-06220-00
Required: 2
SCREW,WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
