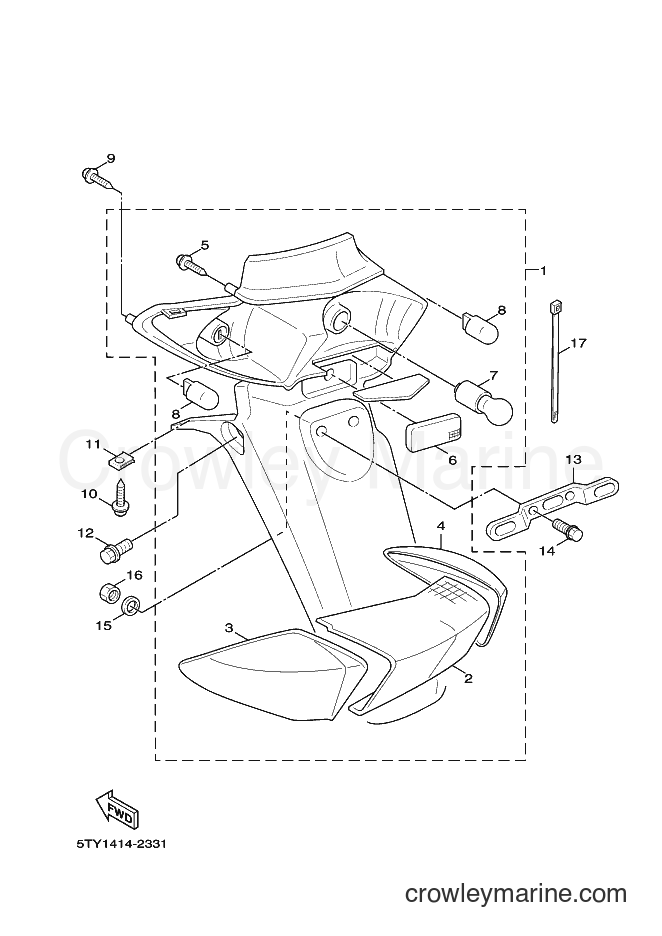

2004 Scooter NXC125 - NXC125 (5ML2) [040] TAILLIGHT diagram
![Yamaha Motors NXC125 (5ML2) [040] - TAILLIGHT](https://cdn.crowleymarine.com/yamaha/vDE7ouyq.png)
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, TAILLIGHT
Price unavailable
3
Required: 1
. LENS, FLASHER
Price unavailable
4
Required: 1
. LENS, FLASHER 2
Price unavailable
5
Required: 2
. SCREW, TAPPING
Price unavailable
6
Yamaha Motors
REAR REFLECTOR ASSEMBLY5CP-H5130-01-00
Required: 1
. REAR REFLECTOR ASSY
$2.17
You save $0.38
7
Yamaha Motors
BULB (12V-21/5W)4VP-H4714-00-00
Required: 1
. BULB (12V-21/5W)
$2.98
You save $0.52
8
Required: 2
. BULB, FLASHER (12V-16W)
Price unavailable
9
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 6
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
10
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$3.94
You save $0.69
-50%
11
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
$2.63
You save $0.47
13
Required: 1
BRACKET, LICENSE
Price unavailable
14
Yamaha Motors
Flange Bolt95817-06014-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-06014-00
In stock
Only 1 remaining
$3.31
You save $-0.51
15
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
$3.02
You save $0.53
16
Yamaha Motors
NUT95617-06100-00
Required: 2
NUT, U
Supersedes: 95607-06100-00
$3.60
You save $-0.70
17
Yamaha Motors
Band1UA-82591-00-00
Required: 1
CLAMP
Supersedes: 90465-13152-00
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
