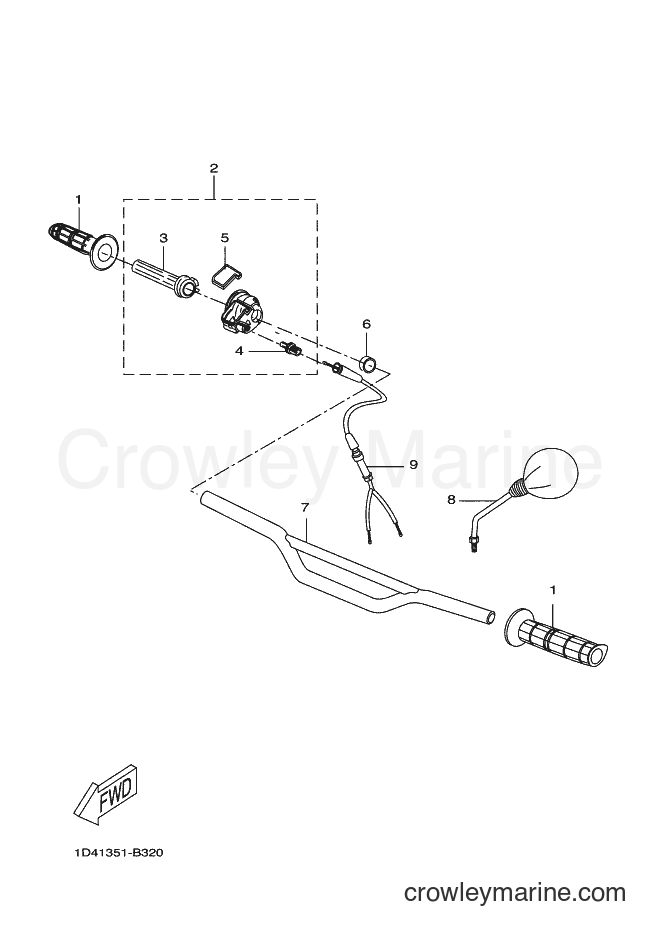

2004 Scooter DT50R - DT50R (2C22) [010] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors DT50R (2C22) [010] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
GRIP SET
Price unavailable
2
Required: 1
GRIP ASSY
Price unavailable
3
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
4
Required: 1
. NUT, AJUSTING
Price unavailable
5
Required: 1
. COVER, CAP GRIP
Price unavailable
6
Required: 1
COLLAR, CABLE CONNECTOR
Price unavailable
7
Required: 1
HANDLEBAR
Price unavailable
7
Required: 1
HANDLEBAR
Price unavailable
8
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
9
Required: 1
CABLE, THROTTLE 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
