2004 Scooter CW50RS - CW50RS (2B11) [090] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

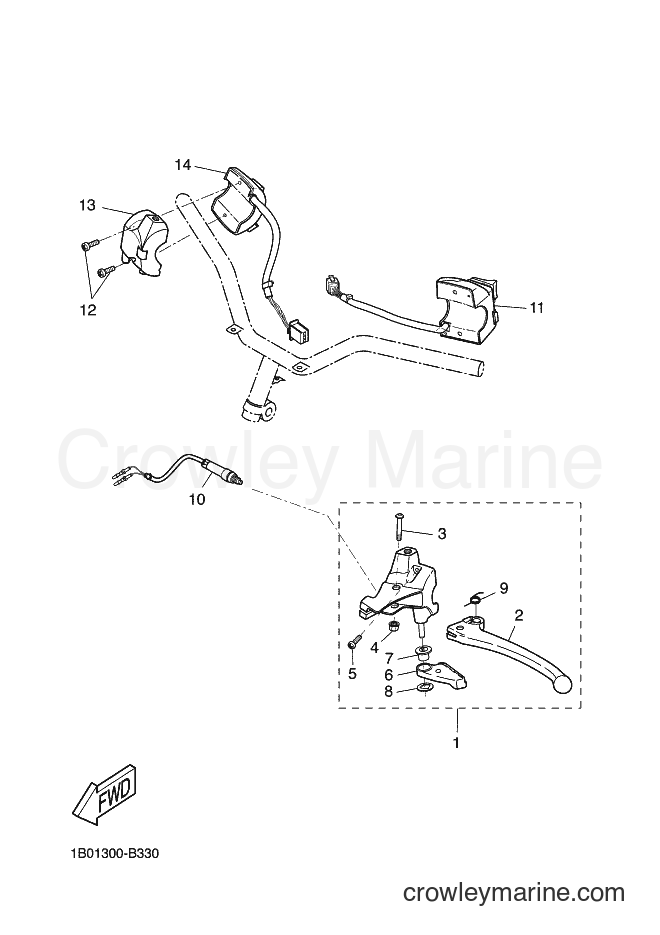

Yamaha Motors CW50RS (2B11) [090] - HANDLE SWITCH & LEVER
Change View:
1
Required: 1
LEVER HOLDER ASSY (LEFT)
Price unavailable
2
Required: 1
. LEVER 1
Price unavailable
LEVER FITTING SCREW
3
Yamaha Motors
LEVER FITTING SCREW3VL-H3915-00-00
Required: 1
. SCREW, LEVER FITTING
Cross Ship
Leaves in 2-5 days
$2.55
$2.17
You save $0.38
More details
LEVER NUT
4
Yamaha Motors
LEVER NUT3VL-H3916-00-00
Required: 1
. NUT, LEVER FITTING
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Lever Bolt
5
Yamaha Motors
Lever Bolt3VL-H3945-00-00
Required: 2
. BOLT, LEVER
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
6
Required: 1
. LEVER, STARTER
Price unavailable
Decompress Collar
7
Yamaha Motors
Decompress Collar3VL-H3982-00-00
Required: 1
. COLLAR, DECOMPRESSION LEVER
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
STARTER WASHER
8
Yamaha Motors
STARTER WASHER3VL-H3943-00-00
Required: 1
. WASHER, STARTER
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
Spring
9
Yamaha Motors
Spring4KH-H3962-00-00
Required: 1
. SPRING
Cross Ship
Leaves in 2-5 days
$1.45
$1.23
You save $0.22
More details
10
Required: 1
FRONT STOP SWITCH ASSY
Price unavailable
11
Required: 1
SWITCH, HANDLE 1
Price unavailable
Lever Bolt
12
Yamaha Motors
Lever Bolt3VL-H3945-00-00
Required: 2
BOLT, LEVER
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
Lower Switch Case
13
Yamaha Motors
Lower Switch Case4CU-H3987-01-00
Required: 1
CASE, SWITCH LOWER
Cross Ship
Leaves in 2-5 days
$51.99
$44.19
You save $7.80
More details
14
Required: 1
SWITCH, HANDLE 2
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
