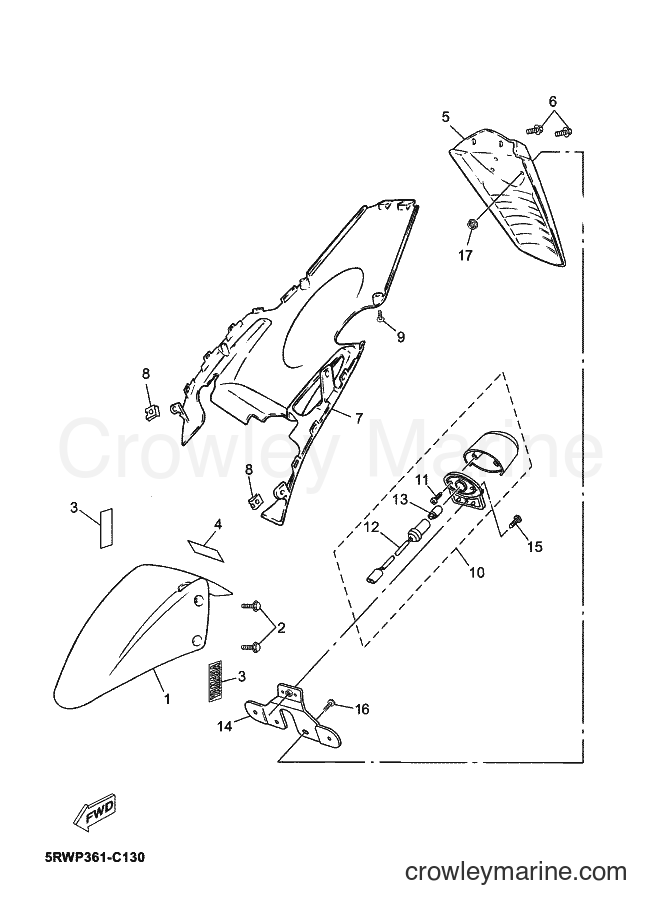

2004 Scooter CS50Z - CS50Z (5RWP) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CS50Z (5RWP) [010] - FENDER
Change View:
1
Required: 1
FENDER, FRONT
Price unavailable
2
Required: 4
SCREW, WITH WASHER
Price unavailable
3
Required: 2
EMBLEM, YAMAHA
Price unavailable
4
Required: 1
LABEL
Price unavailable
5
Required: 1
FENDER, REAR
Price unavailable
6
Required: 2
BOLT, WITH WASHER
Price unavailable
7
Required: 1
GUARD, MUD
Price unavailable
8
Required: 1
NUT, EMBLEM
Price unavailable
9
Required: 2
SCREW, TAPPING
Price unavailable
10
Required: 1
LICENCE LIGHT ASSY
Price unavailable
11
Required: 2
. SCREW
Price unavailable
12
Required: 1
. CORD, LICENCE LIGHT
Price unavailable
13
Required: 1
. BULB (12V-5W)
Price unavailable
14
Required: 1
BRACKET
Price unavailable
15
Required: 1
BOLT
Price unavailable
16
Required: 2
SCREW, BINDING
Price unavailable
Nut
17
Yamaha Motors
Nut90179-05X03-00
Required: 2
NUT
Supersedes: 90179-05X01-00
Cross Ship
Leaves in 2-5 days
$1.20
$1.02
You save $0.18
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
