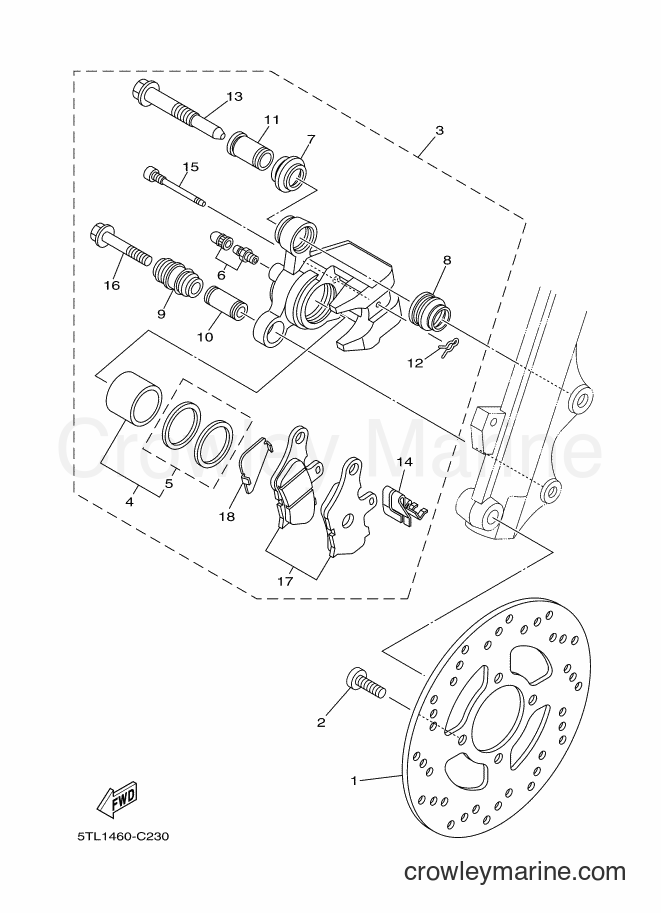

2004 Scooter AL115C - AL115C (5WP4) [010] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5WP4) [010] - FRONT BRAKE CALIPER
Change View:
1
Required: 1
DISK, BRAKE (RIGHT)
Price unavailable
BOLT
2
Yamaha Motors
BOLT90109-084F7-00
Required: 4
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
3
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
4
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
5
Required: 1
. . CALIPER SEAL KIT
Price unavailable
6
Required: 1
. BLEED SCREW KIT
Price unavailable
7
Required: 1
. BOOT 2
Price unavailable
8
Required: 1
. BOOT, CALIPER
Price unavailable
BOOT
9
Yamaha Motors
BOOT34X-25937-00-00
Required: 1
. BOOT 2
Cross Ship
Leaves in 2-5 days
$34.99
$29.74
You save $5.25
More details
SLEEVE, CALIPER
10
Yamaha Motors
SLEEVE, CALIPER5TL-F5838-00-00
Required: 1
. SLEEVE, CALIPER
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
11
Required: 1
. SLEEVE, CALIPER
Price unavailable
12
Required: 1
. CLIP
Price unavailable
13
Required: 1
. PIN, SLIDE
Price unavailable
14
Required: 1
. SUPPORT, PAD
Price unavailable
15
Required: 1
. PIN, PAD
Price unavailable
BOLT
16
Yamaha Motors
BOLT5KN-25926-01-00
Required: 1
. BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 1
. BRAKE PAD KIT
Price unavailable
18
Required: 1
. SHIM, CALIPER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
