All diagrams for this model

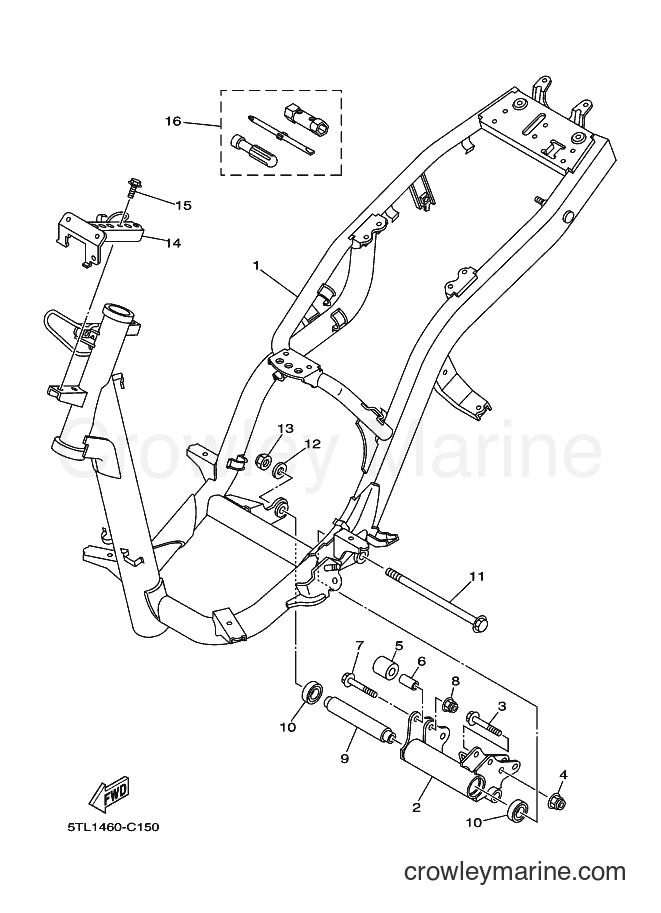

2004 Scooter AL115C - AL115C (5WP4) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115C (5WP4) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Required: 2
BOLT, FLANGE
Price unavailable
5
Required: 2
STOPPER, MAIN STAND
Price unavailable
COLLAR
6
Yamaha Motors
COLLAR90387-08754-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
7
Required: 2
BOLT, FLANGE
Price unavailable
Self Locking Nut
8
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
9
Required: 1
SPACER
Price unavailable
10
Required: 2
BEARING
Price unavailable
11
Required: 1
AXLE, WHEEL
Price unavailable
Plate Washer
12
Yamaha Motors
Plate Washer90201-124E4-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12688-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Self-Locking Nut
13
Yamaha Motors
Self-Locking Nut90185-12119-00
Required: 1
NUT, SELF-LOCKING
Supersedes: 90185-12061-00
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
14
Required: 1
STAY 1
Price unavailable
16
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
