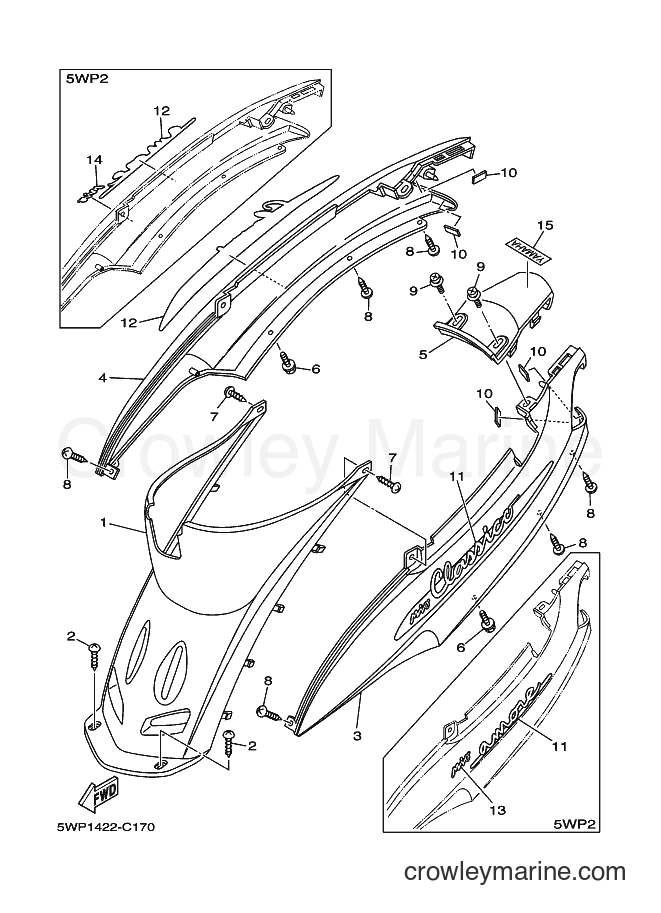

2004 Scooter AL115 - AL115 (5WP2) [010] SIDE COVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AL115 (5WP2) [010] - SIDE COVER
Change View:
1
Required: 1
COVER, SIDE 1
Price unavailable
Truss Screw
2
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
3
Required: 1
COVER, SIDE 2
Price unavailable
3
Required: 1
COVER, SIDE 2
Price unavailable
3
Required: 1
COVER, SIDE 2
Price unavailable
3
Required: 1
COVER, SIDE 2
Price unavailable
4
Required: 1
COVER, SIDE 3
Price unavailable
4
Required: 1
COVER, SIDE 3
Price unavailable
4
Required: 1
COVER, SIDE 3
Price unavailable
4
Required: 1
COVER, SIDE 3
Price unavailable
5
Required: 1
COVER, SIDE 4
Price unavailable
5
Required: 1
COVER, SIDE 4
Price unavailable
5
Required: 1
COVER, SIDE 4
Price unavailable
5
Required: 1
COVER, SIDE 4
Price unavailable
6
Required: 2
SCREW, TAPPING
Price unavailable
Truss Screw
8
Yamaha Motors
Truss Screw97707-50012-00
Required: 6
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.63
$3.94
You save $0.69
More details
Screw with Washer
9
Yamaha Motors
Screw with Washer90159-06067-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 4
DAMPER
Price unavailable
11
Required: 1
EMBLEM 3D
Price unavailable
11
Required: 1
EMBLEM 3D
Price unavailable
12
Required: 1
EMBLEM 3D
Price unavailable
12
Required: 1
EMBLEM 3D
Price unavailable
13
Required: 1
EMBLEM 1
Price unavailable
14
Required: 1
EMBLEM 1
Price unavailable
15
Required: 1
EMBLEM, YAMAHA
Price unavailable
15
Required: 1
EMBLEM, YAMAHA
Price unavailable
