All diagrams for this model

2003 Scooter YW50 - YW50 (5PN2) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

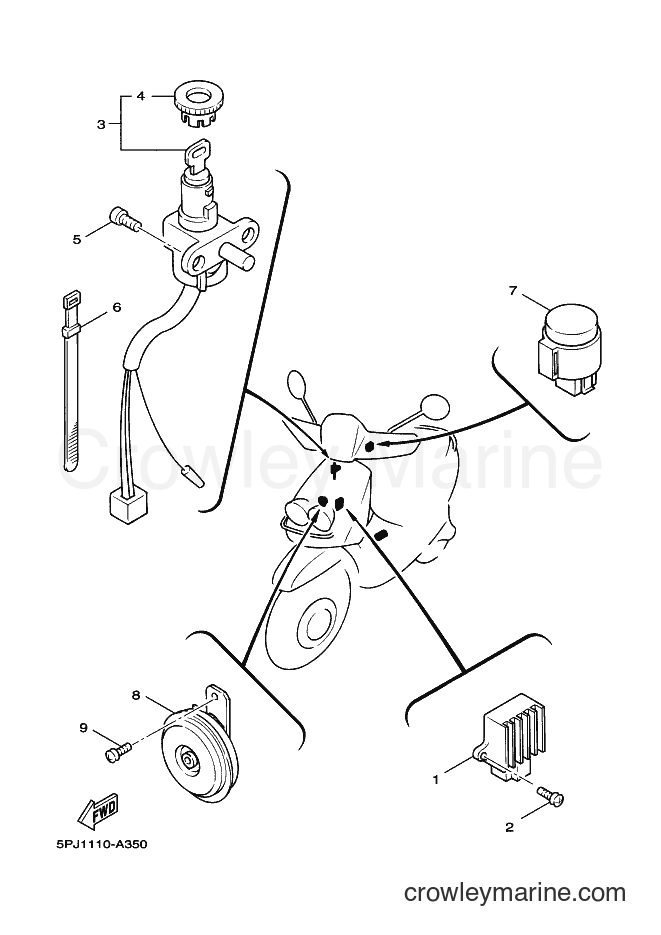

Yamaha Motors YW50 (5PN2) [010] - ELECTRICAL 1
Change View:
Rectifier & Regulator Assembly
1
Yamaha Motors
Rectifier & Regulator Assembly3GF-H1960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$183.99
$156.39
You save $27.60
More details
MAIN SWITCH STEERING LOCK
3
Yamaha Motors
MAIN SWITCH STEERING LOCK5PJ-H2501-00-00
Required: 1
MAIN SWITCH STEERING LOCK
Cross Ship
Leaves in 2-5 days
$72.99
$62.04
You save $10.95
More details
Switch Cap
4
Yamaha Motors
Switch Cap4VP-H2552-10-00
Required: 1
. CAP, SWITCH
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
Screw With Washer
5
Yamaha Motors
Screw With Washer9760L-06216-00
Required: 2
SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$0.45
$0.38
You save $0.07
More details
Switch Cord Band
6
Yamaha Motors
Switch Cord Band23Y-H3936-00-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$0.30
$0.26
You save $0.05
More details
Flasher Relay Assembly
7
Yamaha Motors
Flasher Relay Assembly5PJ-H3350-00-00
Required: 1
FLASHER RELAY ASSY
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
Horn
8
Yamaha Motors
Horn4KP-H3371-01-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Pan Head Screw
9
Yamaha Motors
Pan Head Screw98507-06010-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.85
$3.27
You save $0.58
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
