2003 Scooter YP250A - YP250A (5SJ5) [030] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

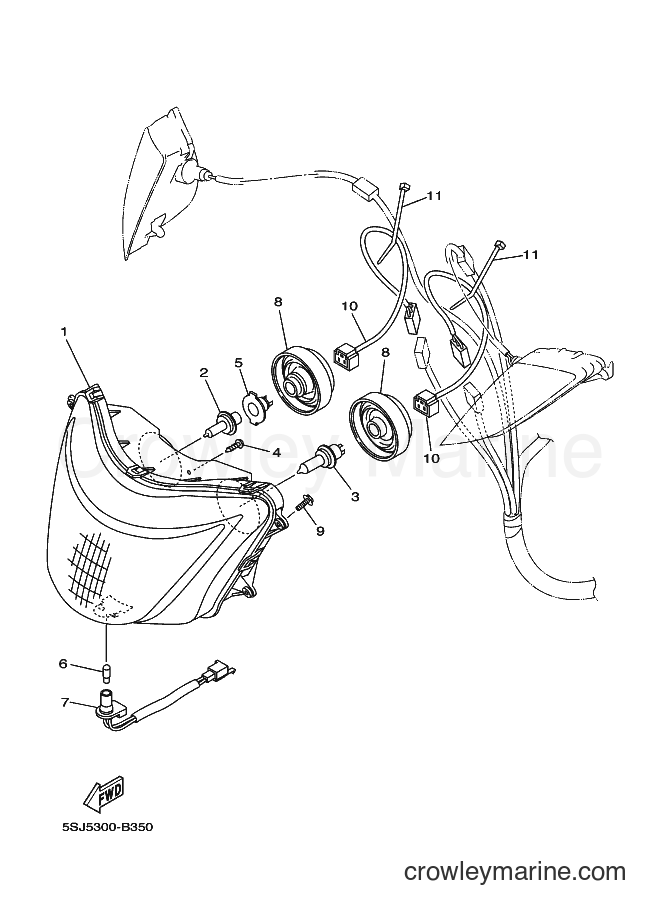

Yamaha Motors YP250A (5SJ5) [030] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
BULB, HL HALOGEN H7
2
Yamaha Motors
BULB, HL HALOGEN H74SV-84314-00-00
Required: 1
BULB (12V-55W)
Cross Ship
Leaves in 2-5 days
$58.99
$50.14
You save $8.85
More details
4
Required: 5
SCREW, TAPPING
Price unavailable
SOCKET CORD ASSEMBLY
5
Yamaha Motors
SOCKET CORD ASSEMBLY4SV-84350-00-00
Required: 1
SOCKET CORD ASSY 2
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
BULB (12V-5W)
6
Yamaha Motors
BULB (12V-5W)4SV-84347-00-00
Required: 1
BULB (12V-5W)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
7
Required: 1
SOCKET CORD ASSY 1
Price unavailable
8
Required: 2
COVER, SOCKET
Price unavailable
90119-06060-00
9
Yamaha Motors
90119-06060-0090119-06052-00
Required: 4
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
10
Required: 2
CORD, HEADLIGHT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
