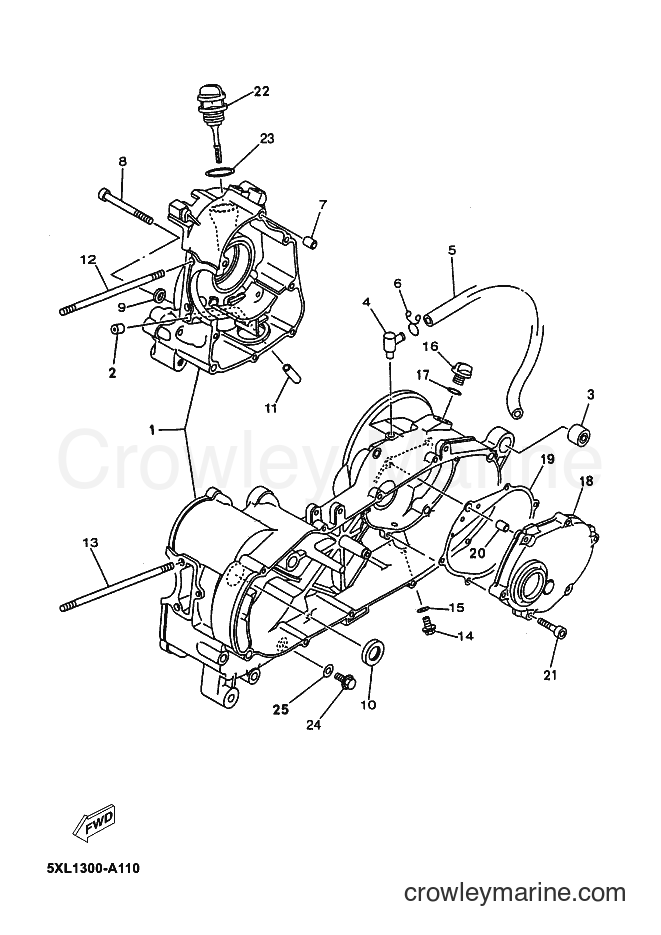

2003 Scooter YP180E - YP180E (5XM1) [080] CRANKCASE diagram
![Yamaha Motors YP180E (5XM1) [080] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/wNPEr6cn.png)
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Required: 1
NOZZLE 1
Price unavailable
3
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 1
BUSH, REAR SHOCK ABSORBER
Supersedes: 4X6-F2216-00-00
$12.32
You save $2.17
4
Required: 1
BREATHER
Price unavailable
5
Required: 1
PIPE, BREATHER
Price unavailable
$3.44
You save $0.61
In stock
Only 1 remaining
$2.25
You save $0.40
8
Required: 8
BOLT
Price unavailable
In stock
Only 4 remaining
$7.31
You save $1.29
$14.02
You save $2.47
$0.85
You save $0.15
12
Required: 2
BOLT, STUD
Price unavailable
13
Required: 2
BOLT, STUD
Price unavailable
$4.67
You save $0.82
$0.94
You save $0.17
$7.22
You save $1.27
17
Yamaha Motors
O-Ring93210-14579-00
Required: 1
O-RING
Supersedes: 93210-14104-00
$6.37
You save $1.12
18
Required: 1
COVER, CRANKCASE 2
Price unavailable
19
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
In stock
Only 1 remaining
$2.25
You save $0.40
21
Required: 6
BOLT, HEXAGON SOCKET HEAD
Price unavailable
22
Required: 1
PLUG, OIL
Price unavailable
23
Yamaha Motors
O-Ring93210-26240-00
Required: 1
O-RING
Supersedes: 93210-26130-00
In stock
Only 1 remaining
$8.07
You save $1.42
$4.67
You save $0.82
$0.94
You save $0.17
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
