2003 Scooter YN100 - YN100 (5KKK) [040] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

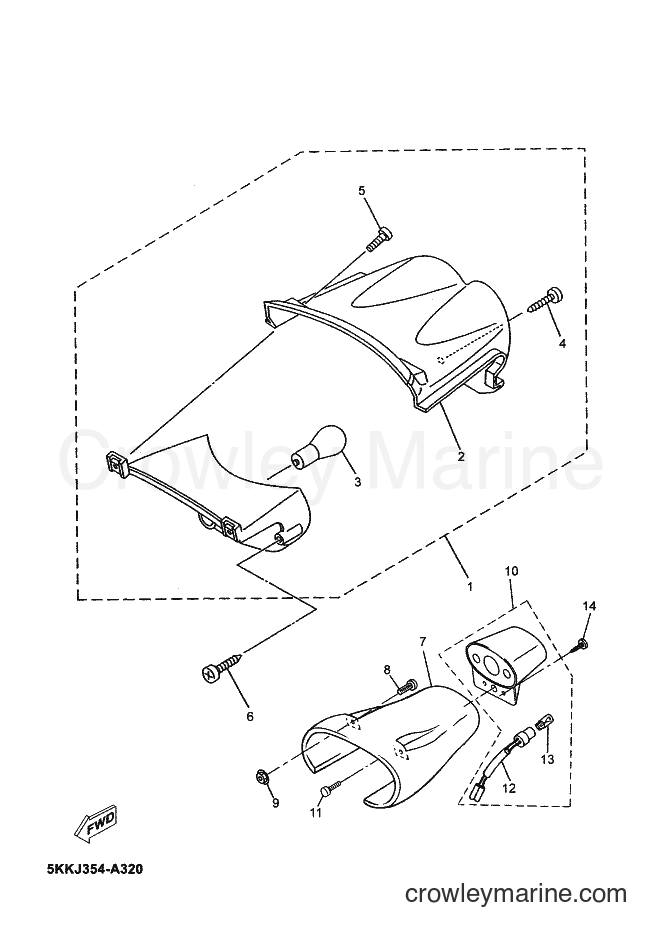

Yamaha Motors YN100 (5KKK) [040] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, TAILLIGHT
Price unavailable
3
Required: 1
. BULB (P21/5W)
Price unavailable
4
Required: 1
. SCREW, LENS FITTING
Price unavailable
5
Required: 2
. SCREW, SPECIAL
Price unavailable
6
Required: 2
SCREW, TAPPING
Price unavailable
7
Required: 1
BRACKET
Price unavailable
Bolt (3JB)
8
Yamaha Motors
Bolt (3JB)91314-06020-00
Required: 2
BOLT
Supersedes: 9131M-06020-00
Cross Ship
Leaves in 2-5 days
$2.65
$2.25
You save $0.40
More details
Flange Nut
9
Yamaha Motors
Flange Nut95707-06500-00
Required: 2
NUT, FLANGE
Supersedes: 9570N-06500-00
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
LICENCSE LIGHT ASSEMBLY
10
Yamaha Motors
LICENCSE LIGHT ASSEMBLY5DS-H4740-00-00
Required: 1
LICENCE LIGHT ASSY
Cross Ship
Leaves in 2-5 days
$20.99
$17.84
You save $3.15
More details
11
Required: 2
. SCREW
Price unavailable
12
Required: 1
. CORD, LICENCE LIGHT
Price unavailable
13
Required: 1
. BULB (12V-5W)
Price unavailable
14
Required: 1
SCREW, TAPPING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
