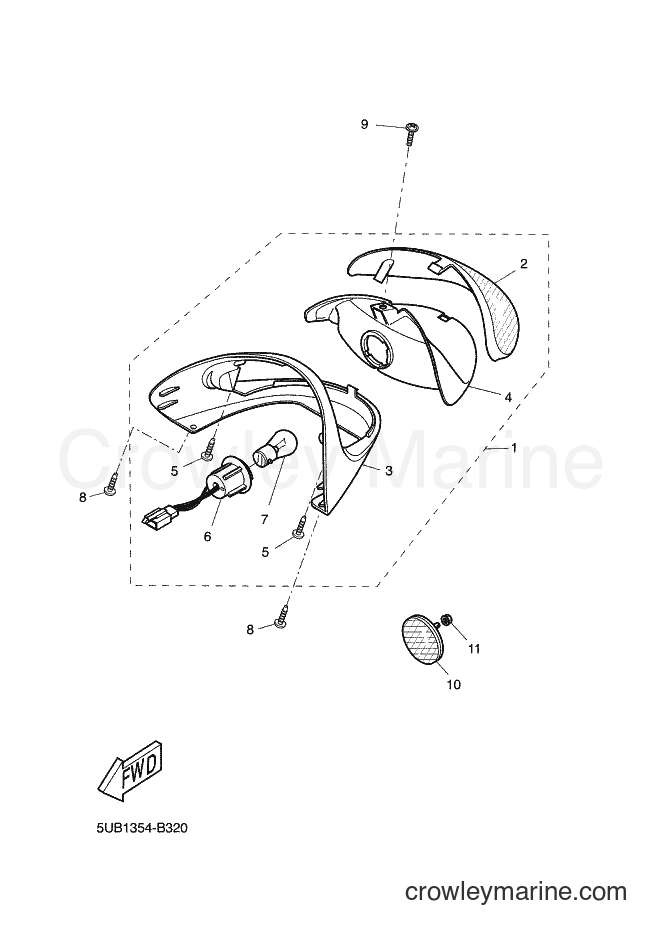

2003 Scooter YH50 - YH50 (5UB2) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5UB2) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, TAILLIGHT
Price unavailable
3
Required: 1
. RIM, TAILLIGHT
Price unavailable
4
Required: 1
. BASE, TAILLIGHT
Price unavailable
5
Required: 2
. SCREW
Price unavailable
6
Required: 1
. CORD ASSY
Price unavailable
7
Required: 1
. BULB (12V-21/5W)
Price unavailable
8
Required: 2
SCREW, TAPPING
Price unavailable
Tapping Screw
9
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 1
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
10
Required: 1
REAR REFLECTOR ASSY
Price unavailable
Nut
11
Yamaha Motors
Nut90179-05X00-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
