All diagrams for this model

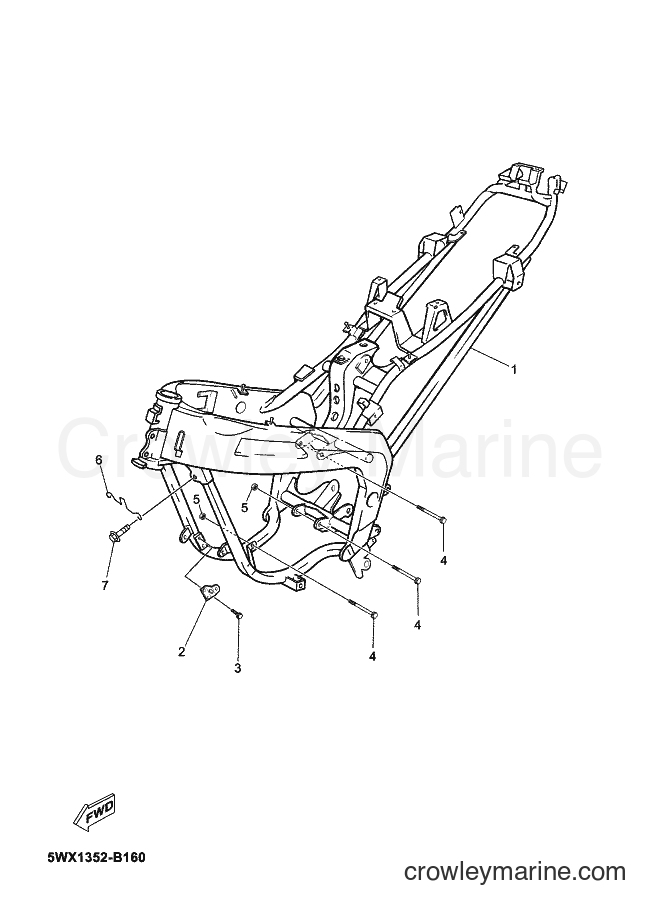

2003 Scooter TZR50 - TZR50 (5WX2) [070] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors TZR50 (5WX2) [070] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
BRACKET, FRONT LOWER 2
Price unavailable
BOLT
3
Yamaha Motors
BOLT90105-08841-00
Required: 2
BOLT, FLANGE
Supersedes: 9581M-08016-00
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
4
Required: 3
BOLT, FLANGE
Price unavailable
Self Locking Nut
5
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
6
Required: 1
GUIDE, CABLE
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt9582M-06012-00
Required: 2
BOLT, FLANGE
Supersedes: 9580M-06012-00
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
