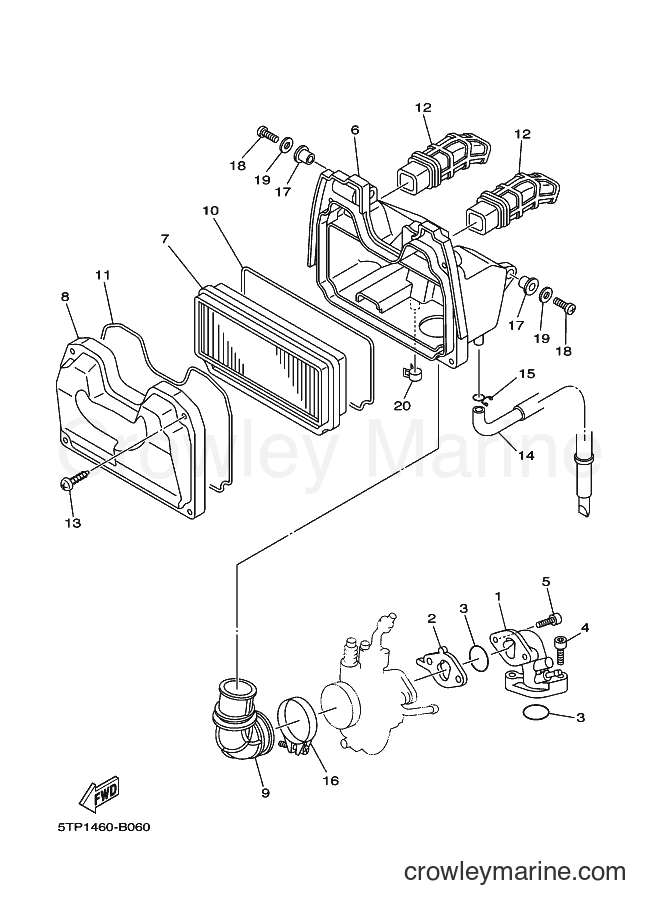

2003 Scooter T110SE - T110SE (5TP1) [010] INTAKE diagram
![Yamaha Motors T110SE (5TP1) [010] - INTAKE](https://cdn.crowleymarine.com/yamaha/OATbgfCt.png)
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Yamaha Motors
O-Ring93210-25552-00
Required: 2
O-RING
Supersedes: 93210-258G2-00
In stock
5+ in stock
$12.32
You save $2.17
In stock
Only 1 remaining
$2.25
You save $0.40
In stock
Only 1 remaining
$2.25
You save $0.40
6
Required: 1
CASE, AIR CLEANER 1
Price unavailable
7
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
8
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
10
Required: 1
SEAL
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 2
PIPE, SUCTION 1
Price unavailable
13
Required: 4
SCREW, TAPPING
Price unavailable
14
Required: 1
PIPE, DRAIN
Price unavailable
15
Required: 1
CLIP
Price unavailable
16
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Supersedes: 90460-43053-00
$18.69
You save $3.30
17
Required: 2
COLLAR
Price unavailable
18
Yamaha Motors
Pan Head Screw98517-06020-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06020-00
In stock
Only 5 remaining
$2.00
You save $0.35
19
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
20
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
CLIP
Supersedes: 90467-13064-00
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
