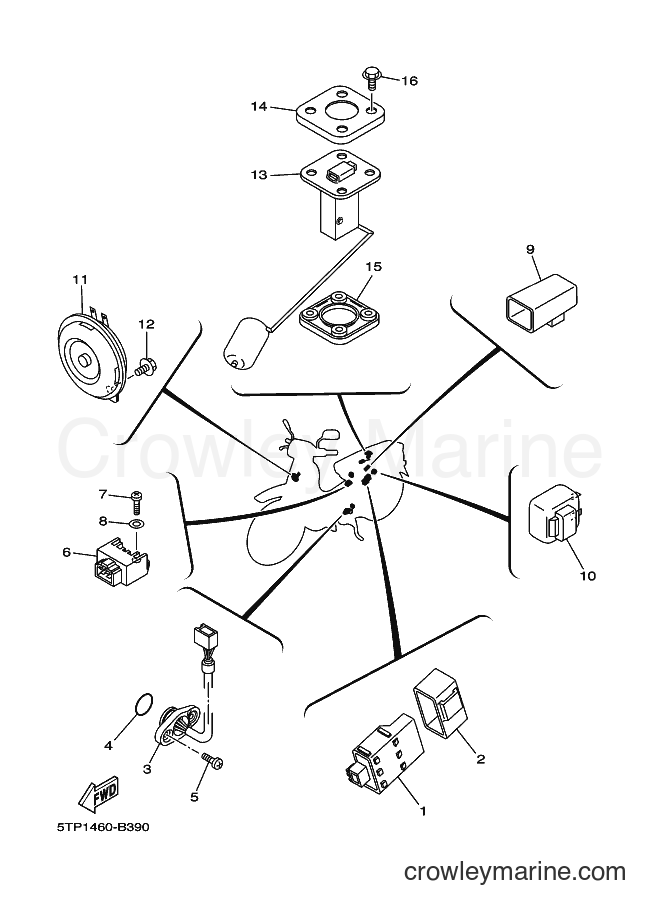

2003 Scooter T110SE - T110SE (5TP1) [010] ELECTRICAL 2 diagram
![Yamaha Motors T110SE (5TP1) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/yarREkKK.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
4
Required: 1
O-RING
Price unavailable
5
Yamaha Motors
PAN HEAD SCREW (3SX)98517-05010-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-05010-00
In stock
Only 4 remaining
$3.91
You save $0.69
6
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
7
Yamaha Motors
Screw98517-06012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-06012-00
$3.49
You save $0.62
8
Yamaha Motors
Plate Washer92907-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
9
Required: 1
STARTER RELAY ASSY
Price unavailable
10
Required: 1
FLASHER RELAY ASSY
Price unavailable
11
Required: 1
HORN
Price unavailable
12
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$4.67
You save $0.82
13
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
14
Required: 1
RETAINER
Price unavailable
15
Required: 1
GASKET, SENDER UNIT
Price unavailable
16
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
