2003 Scooter T105SE - T105SE (5SD4) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

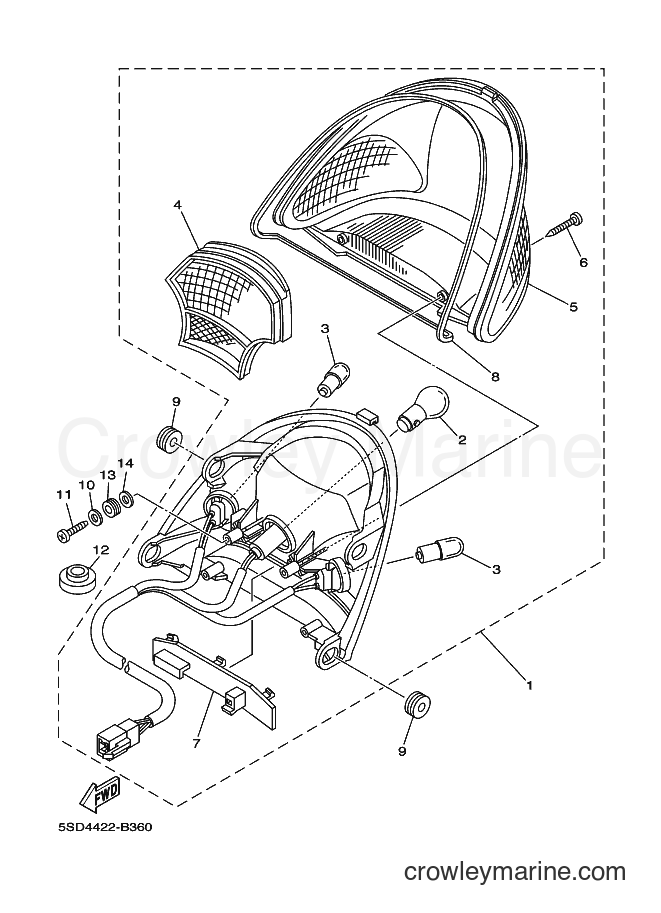

Yamaha Motors T105SE (5SD4) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. BULB (12V 21/5W)
Price unavailable
3
Required: 2
. BULB, FLASHER (12V-10W)
Price unavailable
4
Required: 1
. LENS, TAILLIGHT
Price unavailable
5
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
6
Required: 2
. SCREW, TAPPING
Price unavailable
7
Required: 1
. GROMMET
Price unavailable
8
Required: 1
. GASKET, LENS
Price unavailable
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13005-00
Required: 4
GROMMET
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plate Washer
10
Yamaha Motors
Plate Washer90201-063J2-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Truss Screw
11
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
12
Required: 2
DAMPER
Price unavailable
13
Required: 2
GROMMET
Price unavailable
Plate Washer
14
Yamaha Motors
Plate Washer90201-105R9-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
