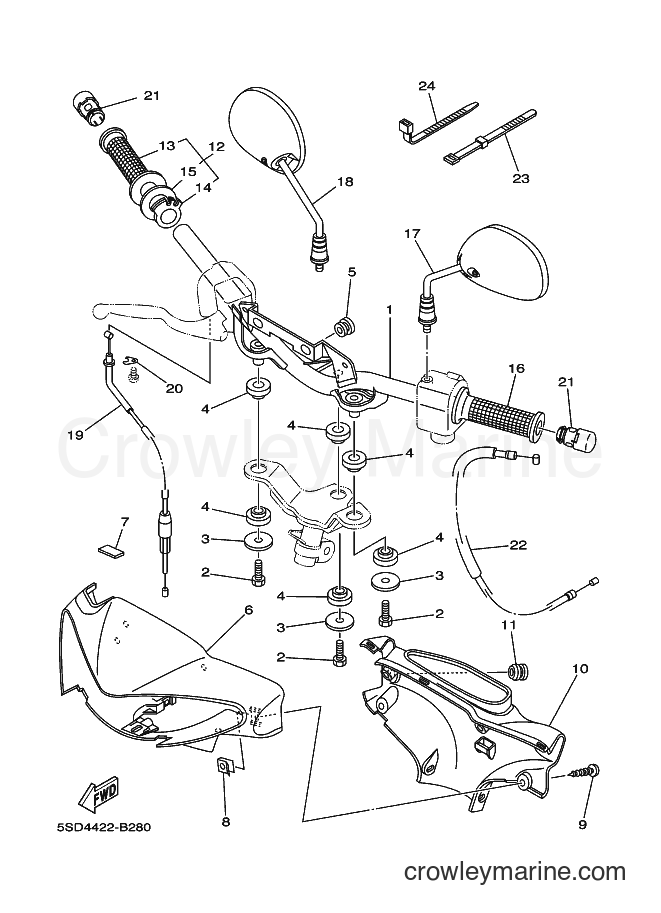

2003 Scooter T105SE - T105SE (5SD4) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors T105SE (5SD4) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/iQSCBm6V.png)
1
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
4
Required: 6
DAMPER
Price unavailable
$3.95
You save $0.70
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 2
DAMPER
Price unavailable
In stock
Only 1 remaining
$0.85
You save $0.15
9
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
$8.07
You save $1.42
10
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
$5.52
You save $0.97
12
Required: 1
GRIP ASSY
Price unavailable
13
Required: 1
. GRIP (RIGHT)
Price unavailable
14
Required: 1
. TUBE, THROTTLE GUIDE
Price unavailable
15
Yamaha Motors
Plate Washer90201-261L1-00
Required: 1
. WASHER, PLATE
$9.77
You save $1.72
16
Required: 1
GRIP
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
19
Required: 1
CABLE, THROTTLE 1
Price unavailable
20
Required: 1
HOLDER
Price unavailable
21
Required: 2
END, GRIP
Price unavailable
22
Required: 1
CABLE, STARTER 1
Price unavailable
23
Yamaha Motors
Switch Cord Band437-83936-11-00
Required: 2
BAND, SWITCH CORD
$4.25
You save $0.75
$3.75
You save $0.66
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
