All diagrams for this model

2003 Scooter T105SE - T105SE (5SD4) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

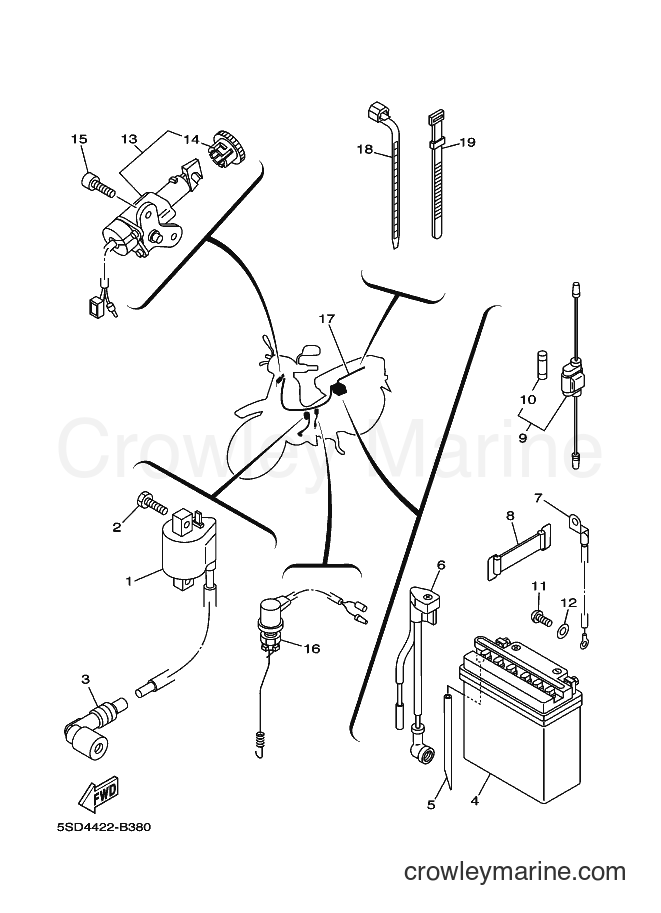

Yamaha Motors T105SE (5SD4) [010] - ELECTRICAL 1
Change View:
1
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Bolt
2
Yamaha Motors
Hexagon Bolt97017-06016-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
PLUG CAP ASSY
3
Yamaha Motors
PLUG CAP ASSY4BP-82370-01-00
Required: 1
PLUG CAP ASSY
Supersedes: 4BP-82370-00-00
Cross Ship
Leaves in 2-5 days
$38.99
$33.14
You save $5.85
More details
4
Required: 1
BATTERY ASSY (GS GM5Z-3B)
Price unavailable
Hose
5
Yamaha Motors
Hose90445-08684-00
Required: 1
HOSE (L330)
Supersedes: 90445-08170-00
Cross Ship
Leaves in 2-5 days
$5.49
$5.16
You save $0.33
More details
6
Required: 1
WIRE, PLUS LEAD
Price unavailable
7
Required: 1
WIRE, MINUS LEAD
Price unavailable
8
Required: 1
BAND, BATTERY
Price unavailable
9
Required: 1
FUSE HOLDER ASSY
Price unavailable
10
Required: 1
. FUSE (10A)
Price unavailable
Plate Washer
12
Yamaha Motors
Plate Washer92907-05600-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$1.00
$1.98
You save $-0.98
More details
13
Required: 1
MAIN SWITCH STEERING LOCK
Price unavailable
14
Required: 1
. CAP, SWITCH
Price unavailable
Bolt (4MY)
15
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
16
Required: 1
STOP SWITCH ASSY
Price unavailable
17
Required: 1
WIRE HARNESS ASSY
Price unavailable
Hose Clamp
18
Yamaha Motors
Hose Clamp90460-15126-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
19
Required: 4
BAND, SWITCH CORD
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
