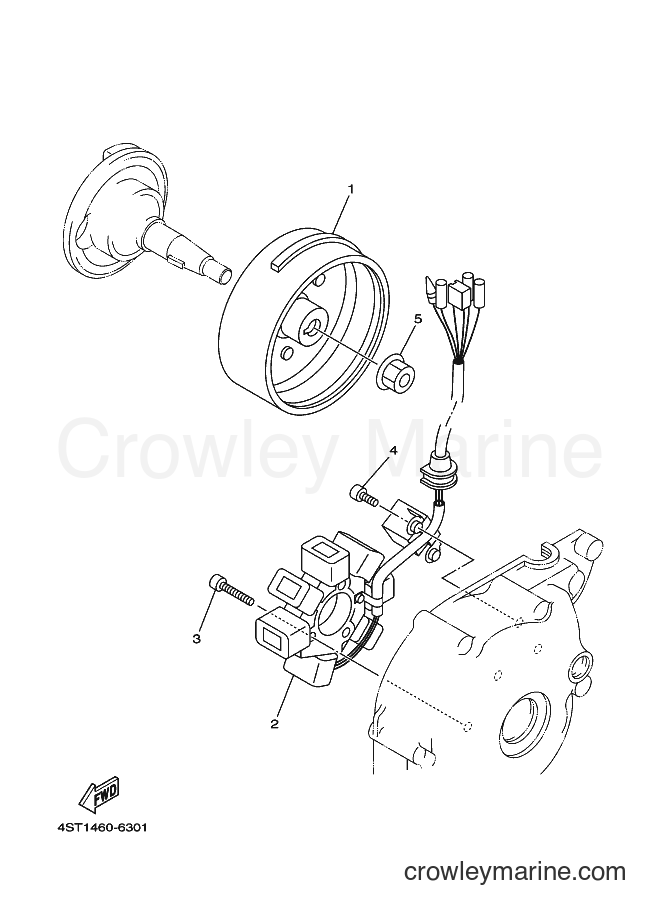

2003 Scooter T105E - T105E (5HU7) [020] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105E (5HU7) [020] - GENERATOR
Change View:
1
Required: 1
ROTOR ASSY
Price unavailable
2
Required: 1
STATOR ASSY
Price unavailable
BOLT
4
Yamaha Motors
BOLT91317-06014-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
5
Required: 1
NUT
Price unavailable
