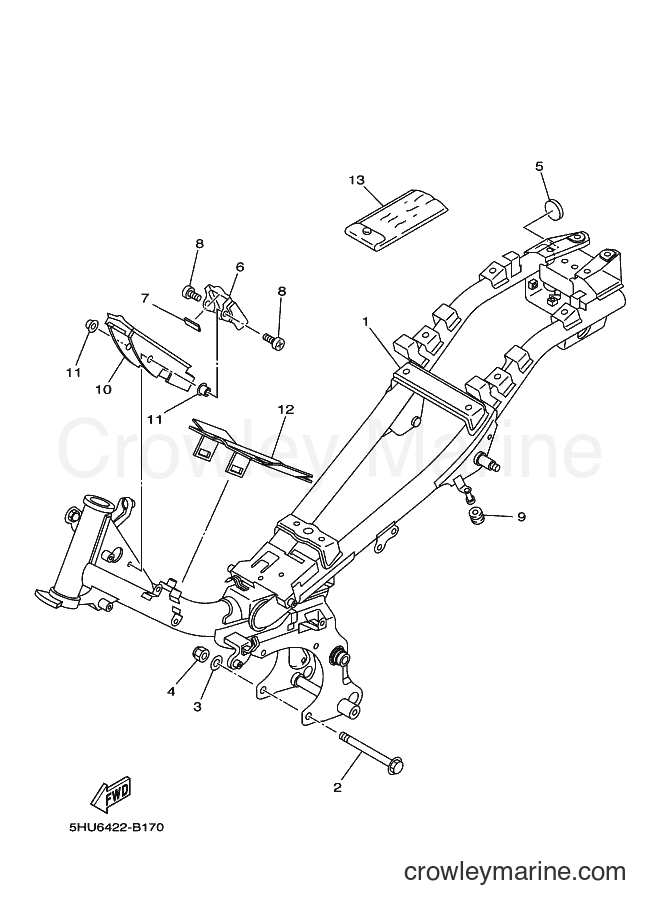

2003 Scooter T105SE - T105SE (5HU6) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T105SE (5HU6) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-08024-00
Required: 3
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Plain Washer
3
Yamaha Motors
Plain Washer90201-086P8-00
Required: 3
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Self Locking Nut
4
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 3
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 2
COVER 2
Price unavailable
6
Required: 1
COVER
Price unavailable
7
Required: 3
DAMPER
Price unavailable
SPECIAL SHAPE SCREW
8
Yamaha Motors
SPECIAL SHAPE SCREW90149-06184-00
Required: 2
SCREW, BINDING
Cross Ship
Leaves in 2-5 days
$4.85
$4.12
You save $0.73
More details
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-10334-00
Required: 2
GROMMET
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
PROTECTOR
Price unavailable
Collar
11
Yamaha Motors
Collar90387-06681-00
Required: 2
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
12
Required: 1
COVER 3
Price unavailable
13
Required: 1
TOOL KIT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
