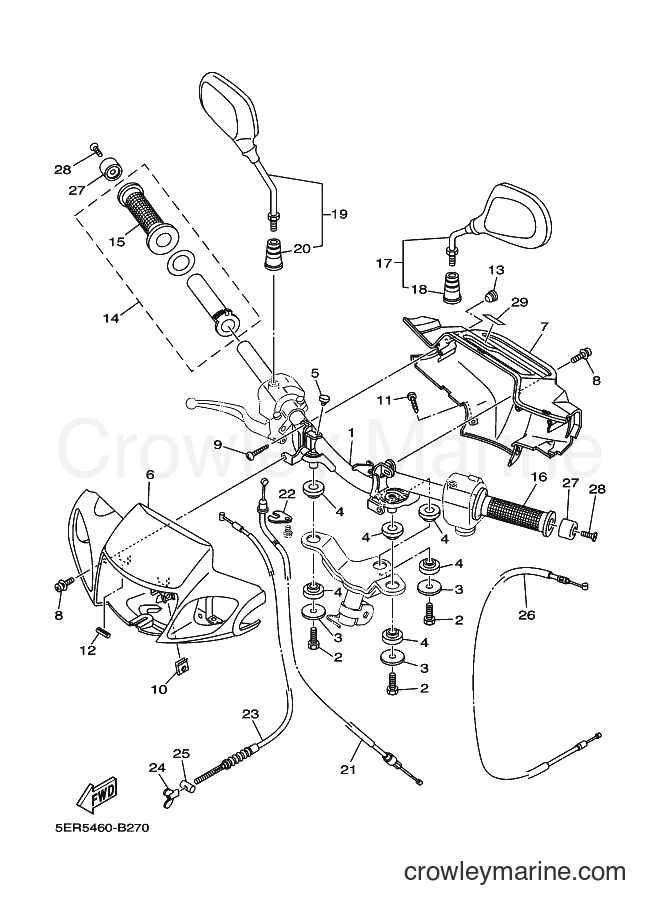

2003 Scooter T105E - T105E (5ER5) [010] STEERING HANDLE & CABLE diagram
![Yamaha Motors T105E (5ER5) [010] - STEERING HANDLE & CABLE](https://cdn.crowleymarine.com/yamaha/pXLwsCmz.png)
1
Required: 1
HANDLE
Price unavailable
2
Yamaha Motors
Bolt97017-08016-00
Required: 3
BOLT
Supersedes: 97007-08016-00
$8.07
You save $1.42
3
Yamaha Motors
Plate Washer90201-08612-00
Required: 3
WASHER, PLATE
$8.07
You save $1.42
4
Required: 6
DAMPER
Price unavailable
5
Required: 1
DAMPER, SEAT
Price unavailable
6
Required: 1
COVER, HANDLEBAR UPPER 1
Price unavailable
7
Required: 1
COVER, HANDLEBAR UPPER 2
Price unavailable
8
Yamaha Motors
Screw With Washer90159-05121-00
Required: 3
SCREW, WITH WASHER
Supersedes: 90159-05028-00
$3.82
You save $0.68
In stock
Only 4 remaining
$1.57
You save $0.28
In stock
Only 1 remaining
$0.85
You save $0.15
11
Yamaha Motors
Truss Screw97707-50012-00
Required: 2
SCREW, TAPPING
$3.94
You save $0.69
12
Required: 2
DAMPER, LOCATING
Price unavailable
$5.52
You save $0.97
14
Required: 1
GRIP ASSY
Price unavailable
15
Required: 1
. GRIP (RIGHT)
Price unavailable
16
Required: 1
GRIP
Price unavailable
17
Required: 1
REAR VIEW MIRROR ASSY (LEFT)
Price unavailable
18
Required: 1
. BOOT 1
Price unavailable
19
Required: 1
REAR VIEW MIRROR ASSY (RIGHT)
Price unavailable
20
Required: 1
. BOOT 1
Price unavailable
21
Required: 1
CABLE, THROTTLE 1
Price unavailable
22
Required: 1
HOLDER
Price unavailable
23
Required: 1
CABLE, BRAKE
Price unavailable
In stock
Only 1 remaining
$4.67
You save $0.82
In stock
Only 4 remaining
$8.07
You save $1.42
26
Required: 1
CABLE, STARTER 1
Price unavailable
27
Required: 2
END, GRIP
Price unavailable
28
Yamaha Motors
Flat Head Screw98707-06030-00
Required: 2
SCREW, FLAT HEAD
In stock
Only 3 remaining
$6.79
You save $1.20
29
Required: 1
EMBLEM
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
