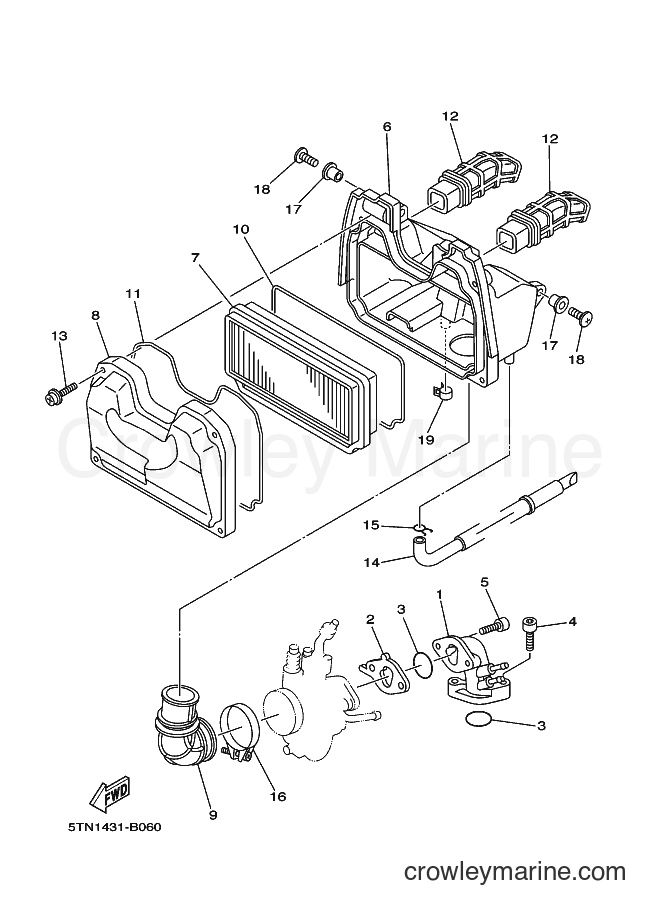

2003 Scooter L-110ED - L-110ED (5TN1) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L-110ED (5TN1) [010] - INTAKE
Change View:
1
Required: 1
JOINT, CARBURETOR 1
Price unavailable
2
Required: 1
JOINT
Price unavailable
3
Required: 2
O-RING
Price unavailable
6
Required: 1
CASE, AIR CLEANER 1
Price unavailable
7
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
8
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
10
Required: 1
SEAL
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 2
PIPE, SUCTION 1
Price unavailable
13
Required: 4
SCREW
Price unavailable
14
Required: 1
PIPE, DRAIN
Price unavailable
15
Required: 1
CLIP
Price unavailable
Hose Clamp
16
Yamaha Motors
Hose Clamp90460-43179-00
Required: 1
CLAMP, HOSE
Cross Ship
Leaves in 2-5 days
$21.99
$18.69
You save $3.30
More details
COLLAR
17
Yamaha Motors
COLLAR90387-06737-00
Required: 2
COLLAR
Supersedes: 90387-068J7-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
ROUND HEAD SCREW
18
Yamaha Motors
ROUND HEAD SCREW90150-06021-00
Required: 2
SCREW, ROUND HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Clip (3YX)
19
Yamaha Motors
Clip (3YX)90467-13133-00
Required: 1
CLIP
Supersedes: 90467-13064-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
