2003 Scooter L-110ED - L-110ED (5TN1) [010] FRONT WHEEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

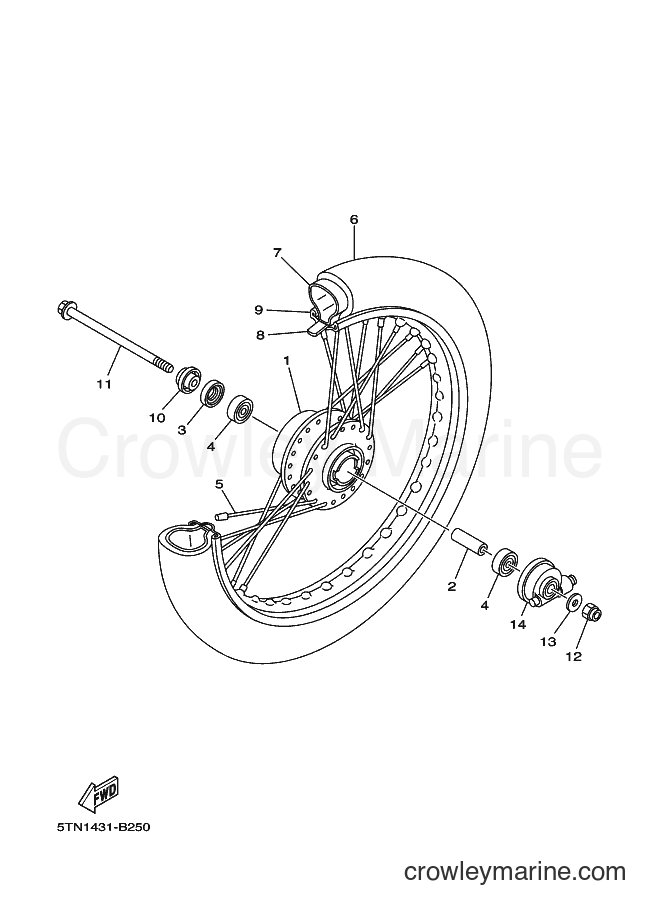

Yamaha Motors L-110ED (5TN1) [010] - FRONT WHEEL
Change View:
1
Required: 1
HUB, FRONT
Price unavailable
2
Required: 1
SPACER
Price unavailable
Oil Seal
3
Yamaha Motors
Oil Seal93106-20808-00
Required: 1
OIL SEAL
Cross Ship
Leaves in 2-5 days
$1.80
$1.53
You save $0.27
More details
4
Required: 2
BEARING
Price unavailable
5
Required: 1
SPOKE SET, FRONT
Price unavailable
6
Required: 1
TIRE (70/90-17 M/C 38P V244)
Price unavailable
6
Required: 1
TIRE (70/90-17 M/C 38P D104 J)
Price unavailable
7
Required: 1
TUBE (70/90-17 TR4)
Price unavailable
7
Required: 1
TUBE (80/90-17 TR4)
Price unavailable
8
Required: 1
BAND, RIM (70/90-17)
Price unavailable
8
Required: 1
BAND, RIM (1.40-17)
Price unavailable
9
Required: 1
RIM (1.40-17)
Price unavailable
517 F. WHEEL COLLAR
10
Yamaha Motors
517 F. WHEEL COLLAR90387-10277-00
Required: 1
COLLAR
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
11
Required: 1
AXLE, WHEEL
Price unavailable
Self-Locking Nut
12
Yamaha Motors
Self-Locking Nut90185-10091-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plain Washer
13
Yamaha Motors
Plain Washer90201-101J1-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
14
Required: 1
GEAR UNIT ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
