All diagrams for this model

2003 Scooter CW50N - CW50N (1D11) [010] ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

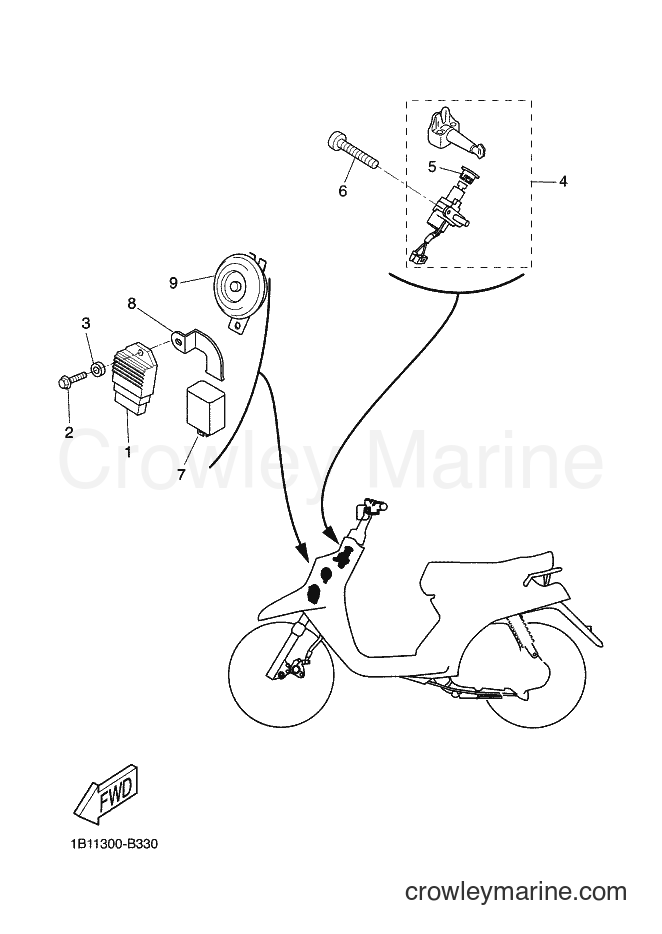

Yamaha Motors CW50N (1D11) [010] - ELECTRICAL 1
Change View:
1
Required: 1
RECTIFIER & REGULATOR ASSY
Price unavailable
2
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
3
Required: 1
COLLAR
Price unavailable
4
Required: 1
KEY SET
Price unavailable
Cap
5
Yamaha Motors
Cap1S0-H2552-00-00
Required: 1
. CAP
Supersedes: 4VV-H2532-00-00
Cross Ship
Leaves in 2-5 days
$7.99
$6.79
You save $1.20
More details
BOLT
6
Yamaha Motors
BOLT90109-06851-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$1.95
$1.66
You save $0.29
More details
7
Required: 1
FLASHER RELAY ASSY
Price unavailable
8
Required: 1
BRACKET, FLASHER RELAY 1
Price unavailable
Horn
9
Yamaha Motors
Horn4CU-H3371-03-00
Required: 1
HORN
Cross Ship
Leaves in 2-5 days
$47.99
$40.79
You save $7.20
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
