All diagrams for this model

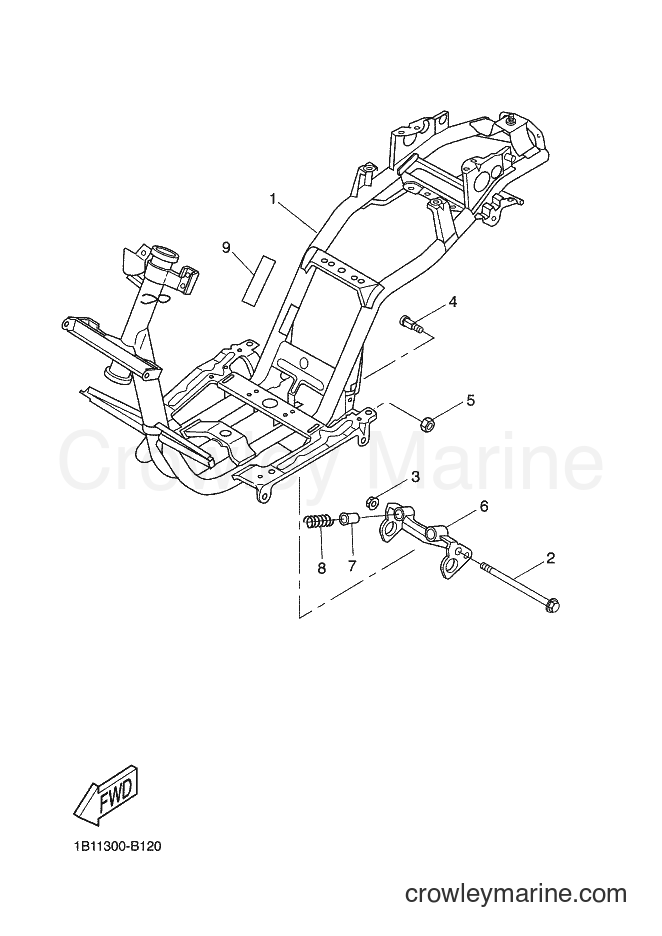

2003 Scooter CW50N - CW50N (1B11) [020] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors CW50N (1B11) [020] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10063-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Nut
3
Yamaha Motors
Nut90179-10279-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 2
BOLT, ENGINE MOUNTING 1
Price unavailable
NUT
5
Yamaha Motors
NUT95617-10100-00
Required: 2
NUT, U
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Engine Bracket Com
6
Yamaha Motors
Engine Bracket Com3VL-F1410-11-00
Required: 1
ENGINE BRACKET COMP.
Cross Ship
Leaves in 2-5 days
$105.99
$90.09
You save $15.90
More details
7
Required: 2
DAMPER
Price unavailable
Compression Spring
8
Yamaha Motors
Compression Spring90501-290K2-00
Required: 2
SPRING, COMPRESSION
Supersedes: 90501-29517-00
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
9
Required: 1
LABEL, WARNING
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
