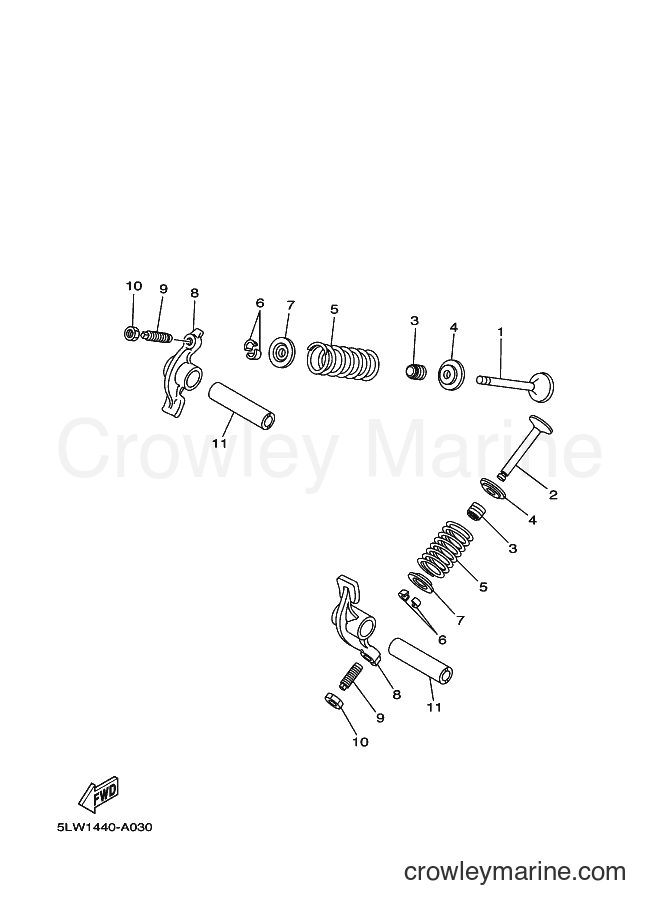

2003 Scooter AT115 - AT115 (5VD1) [010] VALVE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (5VD1) [010] - VALVE
Change View:
1
Required: 1
VALVE, INTAKE
Price unavailable
2
Required: 1
VALVE, EXHAUST
Price unavailable
Valve Stem Seal
3
Yamaha Motors
Valve Stem Seal33M-12119-00-00
Required: 2
SEAL, VALVE STEM
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
4
Required: 2
SEAT, VALVE SPRING
Price unavailable
5
Required: 2
SPRING, VALVE INNER
Price unavailable
Valve Spring Retainer
7
Yamaha Motors
Valve Spring Retainer33M-12117-01-00
Required: 2
RETAINER, VALVE SPRING
Supersedes: 33M-12117-00-00
Cross Ship
Leaves in 2-5 days
$4.40
$3.74
You save $0.66
More details
Rocker Shaft
11
Yamaha Motors
Rocker Shaft22F-12156-00-00
Required: 2
SHAFT, ROCKER 2
Cross Ship
Leaves in 2-5 days
$22.99
$19.54
You save $3.45
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
