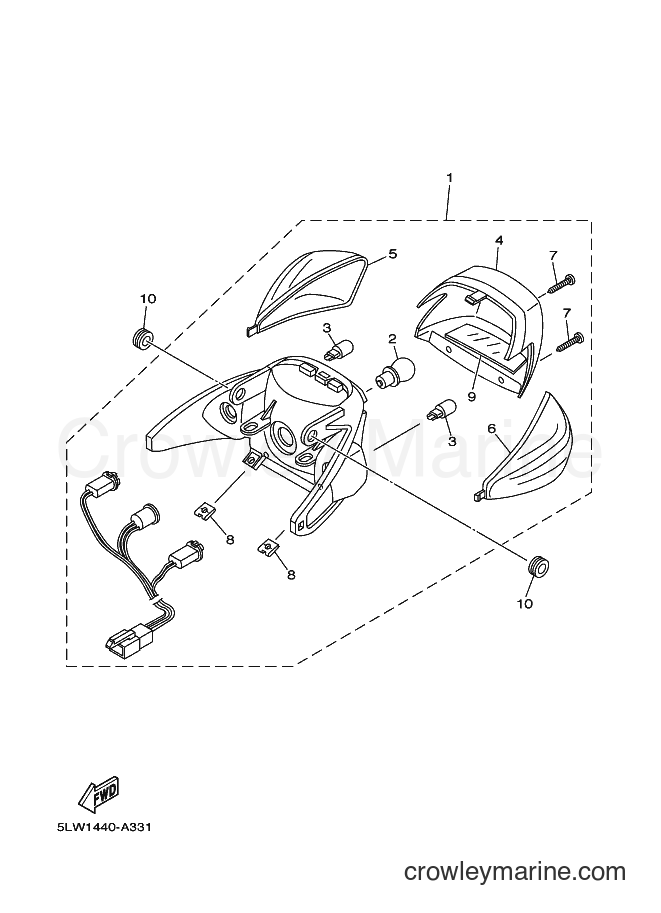

Yamaha Motors AT115 (5VD1) [010] - TAILLIGHT

Change View:

Required: 1

TAILLIGHT ASSY

Price unavailable

Required: 1

. BULB (12V-21/5W)

Price unavailable

Required: 2

. BULB (12V-10W)

Price unavailable

Required: 1

. LENS, TAILLIGHT

Price unavailable

Required: 1

. LENS, FLASHER 2

Price unavailable

Required: 1

. LENS, FLASHER

Price unavailable

Required: 2

. SCREW, TAPPING

Price unavailable

Yamaha Motors

Spring Nut90183-05042-00

Required: 2

. NUT, SPRING

Supersedes: 90183-05807-00

In stock

Only 1 remaining

~~$1.00~~

$0.85

You save $0.15

More details

Required: 1

. LENS, LICENCE LIGHT

Price unavailable

Yamaha Motors

GROMMET, WATER TUBE (UPPER)90480-13428-00

Required: 2

GROMMET

~~$9.49~~

$8.07

You save $1.42

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
