2003 Scooter AT115 - AT115 (5VD1) [010] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

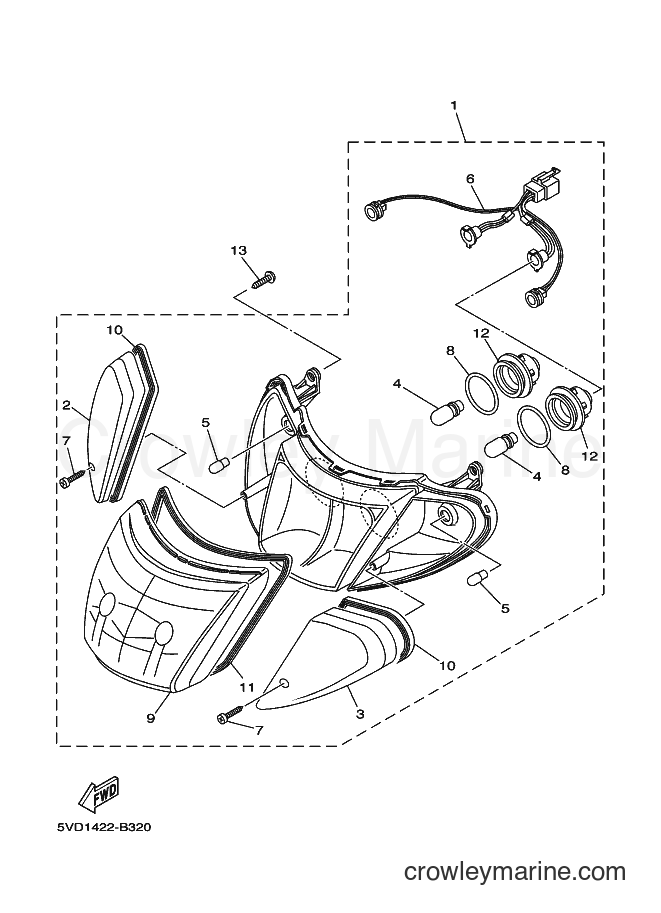

Yamaha Motors AT115 (5VD1) [010] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT ASSY
Price unavailable
2
Required: 1
. LENS, FLASHER 2
Price unavailable
3
Required: 1
. LENS, FLASHER
Price unavailable
4
Required: 2
. BULB, HEADLIGHT (12V 25/25W)
Price unavailable
5
Required: 2
. BULB, FLASHER
Price unavailable
6
Required: 1
. SOCKET CORD ASSY 1
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw97780-40112-00
Required: 2
. SCREW, TAPPING
Supersedes: 97702-40112-00
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
8
Required: 2
. RING, RETAINING
Price unavailable
9
Required: 1
. LENS, HEADLIGHT
Price unavailable
10
Required: 2
. GASKET, FLASHER LENS
Price unavailable
11
Required: 1
. GASKET, LENS
Price unavailable
12
Required: 2
. COVER, SOCKET
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
