2003 Scooter AT115 - AT115 (5VD1) [010] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

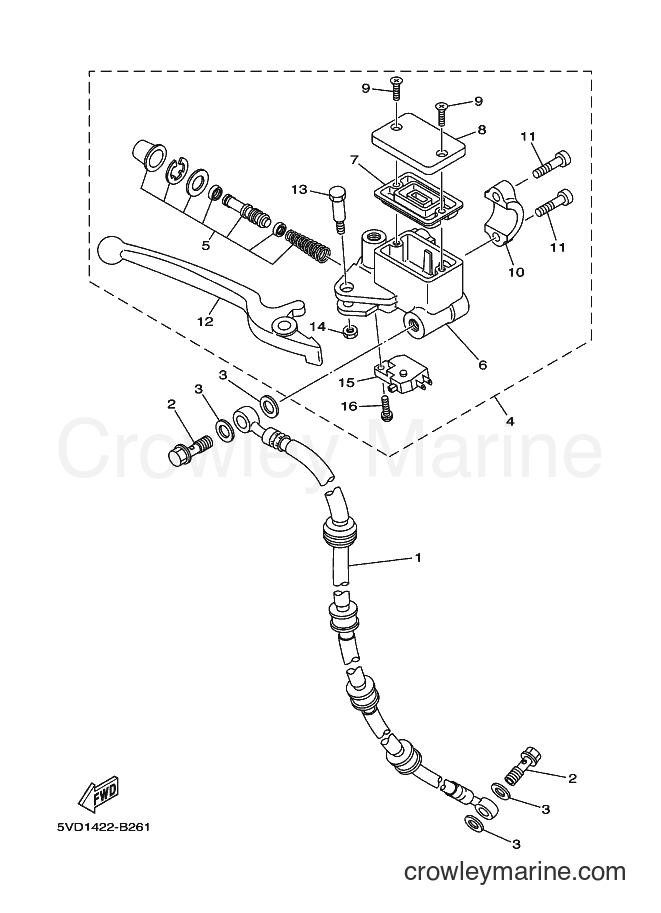

Yamaha Motors AT115 (5VD1) [010] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
HOSE, BRAKE 1
Price unavailable
Union Bolt (3GM)
2
Yamaha Motors
Union Bolt (3GM)90401-10159-00
Required: 2
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$12.49
$10.62
You save $1.87
More details
Plate Washer
3
Yamaha Motors
Plate Washer90201-10118-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
4
Required: 1
MASTER CYLINDER ASSY
Price unavailable
5
Required: 1
. CYLINDER KIT, MASTER
Price unavailable
6
Required: 1
. BODY, MASTER CYLINDER
Price unavailable
7
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
8
Required: 1
. CAP, RESERVOIR
Price unavailable
9
Required: 2
. SCREW, FLAT HEAD
Price unavailable
10
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
11
Required: 2
. BOLT
Price unavailable
12
Required: 1
. LEVER 2
Price unavailable
BOLT
13
Yamaha Motors
BOLT90109-06577-00
Required: 1
. BOLT
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
14
Required: 1
. NUT, U
Price unavailable
15
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
16
Required: 1
. SCREW, PAN HEAD WITH WASHER
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
