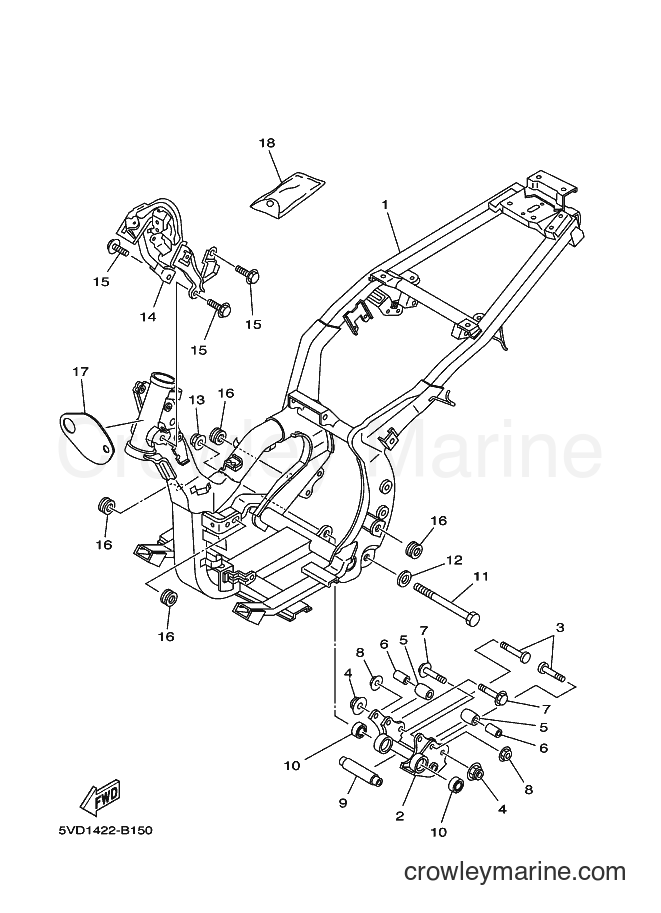

2003 Scooter AT115 - AT115 (5VD1) [010] FRAME diagram
![Yamaha Motors AT115 (5VD1) [010] - FRAME](https://cdn.crowleymarine.com/yamaha/0j5y3G7b.png)
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Yamaha Motors
Engine Mounting Bolt5G3-21481-00-00
Required: 2
BOLT, ENGINE MOUNTING 1
$19.54
You save $3.45
In stock
5+ in stock
$3.53
You save $0.62
5
Required: 2
STOPPER, MAIN STAND
Price unavailable
$7.22
You save $1.27
7
Yamaha Motors
Flange Bolt95817-08050-00
Required: 2
BOLT, FLANGE
Supersedes: 95807-08050-00
$3.15
You save $0.56
8
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 2
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
$8.07
You save $1.42
9
Required: 1
SPACER
Price unavailable
10
Required: 2
BEARING
Price unavailable
11
Required: 1
AXLE, WHEEL
Price unavailable
12
Yamaha Motors
Plate Washer90201-124E4-00
Required: 1
WASHER, PLATE
Supersedes: 90201-12688-00
$8.92
You save $1.57
13
Yamaha Motors
FLANGE NUT95607-12200-00
Required: 1
NUT, SELF-LOCKING
$5.52
You save $0.97
14
Required: 1
STAY 1
Price unavailable
-50%
15
Yamaha Motors
Flange Bolt95817-08012-00
Required: 3
BOLT, FLANGE
Supersedes: 95827-08012-00
In stock
Only 1 remaining
$2.75
You save $2.75
16
Yamaha Motors
Grommet90480-01558-00
Required: 4
GROMMET
Supersedes: 90480-01868-00
$3.95
You save $0.70
17
Required: 1
COVER 2
Price unavailable
18
Required: 1
TOOL KIT
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
