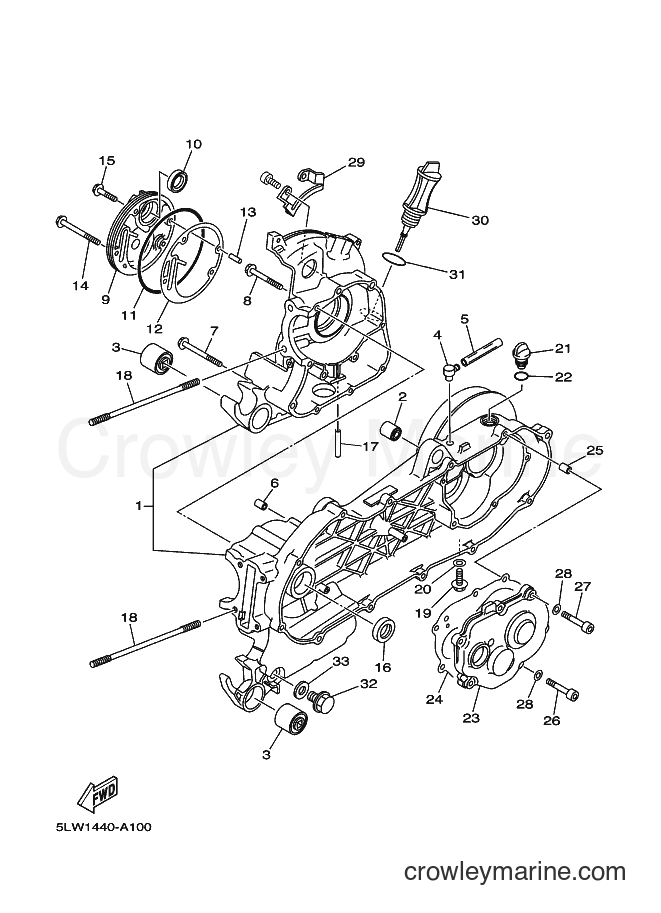

2003 Scooter AT115 - AT115 (5VD1) [010] CRANKCASE diagram
![Yamaha Motors AT115 (5VD1) [010] - CRANKCASE](https://cdn.crowleymarine.com/yamaha/LSKO6seC.png)
1
Required: 1
CRANKCASE ASSY
Price unavailable
2
Yamaha Motors
Rear Shock Absorber Bushing164-22216-00-00
Required: 1
BUSH, REAR SHOCK ABSORBER
$12.32
You save $2.17
3
Required: 2
BUSH 1
Price unavailable
4
Required: 1
BREATHER
Price unavailable
5
Required: 1
PIPE, BREATHER
Price unavailable
In stock
Only 1 remaining
$2.12
You save $0.53
$2.63
You save $0.47
$2.34
You save $0.41
9
Required: 1
COVER, CAP
Price unavailable
10
Required: 1
OIL SEAL
Price unavailable
11
Required: 1
O-RING
Price unavailable
12
Required: 1
GASKET
Price unavailable
$1.82
You save $-1.27
$2.38
You save $0.42
15
Yamaha Motors
Washer Based Bolt90105-06696-00
Required: 1
BOLT, FLANGE
Supersedes: 95027-06016-00
$8.92
You save $1.57
16
Required: 1
OIL SEAL
Price unavailable
17
Required: 1
PIPE, OIL 1
Price unavailable
18
Required: 4
BOLT, STUD 1
Price unavailable
$4.67
You save $0.82
$6.37
You save $1.12
21
Required: 1
PLUG, OIL
Price unavailable
22
Required: 1
O-RING
Price unavailable
23
Required: 1
COVER, CRANKCASE 2
Price unavailable
24
Required: 1
GASKET, CRANKCASE COVER 2
Price unavailable
25
Required: 2
PIN, DOWEL
Price unavailable
$4.23
You save $-1.48
$3.23
You save $0.57
28
Yamaha Motors
Plate Washer90201-06431-00
Required: 6
WASHER, PLATE
$5.52
You save $0.97
29
Required: 1
PLATE
Price unavailable
30
Required: 1
PLUG, OIL LEVEL
Price unavailable
31
Required: 1
O-RING
Price unavailable
-50%
32
Yamaha Motors
Straight Screw Plug90340-12006-00
Required: 1
PLUG, STRAIGHT SCREW
Supersedes: 90340-12059-00
In stock
Only 2 remaining
$2.27
You save $2.27
33
Yamaha Motors
Plate Washer90201-12172-00
Required: 1
WASHER, PLATE
$2.93
You save $0.52
