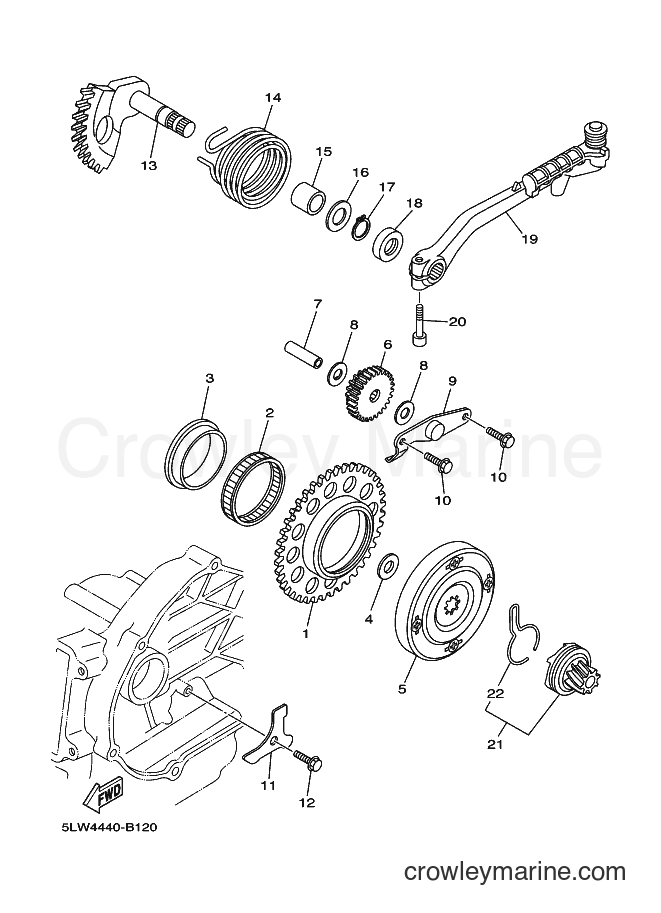

2003 Scooter AT115 - AT115 (5MX4) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (5MX4) [010] - STARTER
Change View:
1
Required: 1
WHEEL, STARTER
Price unavailable
2
Required: 1
BEARING
Price unavailable
Gear Boss
3
Yamaha Motors
Gear Boss5LW-E5538-00-00
Required: 1
BOSS, GEAR 2
Cross Ship
Leaves in 2-5 days
$16.49
$14.02
You save $2.47
More details
Plate Washer
4
Yamaha Motors
Plate Washer90201-164J0-00
Required: 1
WASHER
Cross Ship
Leaves in 2-5 days
$2.40
$2.04
You save $0.36
More details
5
Required: 1
STARTER CLUTCH ASSY
Price unavailable
6
Required: 1
IDLE GEAR ASSY
Price unavailable
7
Required: 1
SHAFT 1
Price unavailable
Plate Washer
8
Yamaha Motors
Plate Washer90201-10118-00
Required: 2
WASHER, PLATE
Supersedes: 90201-10018-00
Cross Ship
Leaves in 2-5 days
$3.80
$3.23
You save $0.57
More details
9
Required: 1
PLATE, IDLE GEAR
Price unavailable
Flange Bolt (4MY)
10
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
11
Required: 1
PLATE
Price unavailable
Flange Bolt (4MY)
12
Yamaha Motors
Flange Bolt (4MY)95027-06012-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$4.20
$3.57
You save $0.63
More details
13
Required: 1
KICK SHAFT ASSY
Price unavailable
Torsion Spring
14
Yamaha Motors
Torsion Spring90508-32768-00
Required: 1
SPRING, TORSION
Cross Ship
Leaves in 2-5 days
$19.49
$16.57
You save $2.92
More details
15
Required: 1
BUSH, SOLID
Price unavailable
Plain Washer
16
Yamaha Motors
Plain Washer90201-154E8-00
Required: 1
WASHER, PLATE (T=1.0)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Circle Clip
17
Yamaha Motors
Circle Clip99009-15400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Oil Seal
18
Yamaha Motors
Oil Seal93102-15805-00
Required: 1
OIL SEAL
Supersedes: 93102-15801-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
19
Required: 1
KICK CRANK ASSY
Price unavailable
21
Required: 1
KICK PINION ASSY 2
Price unavailable
22
Required: 1
. CLIP
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
