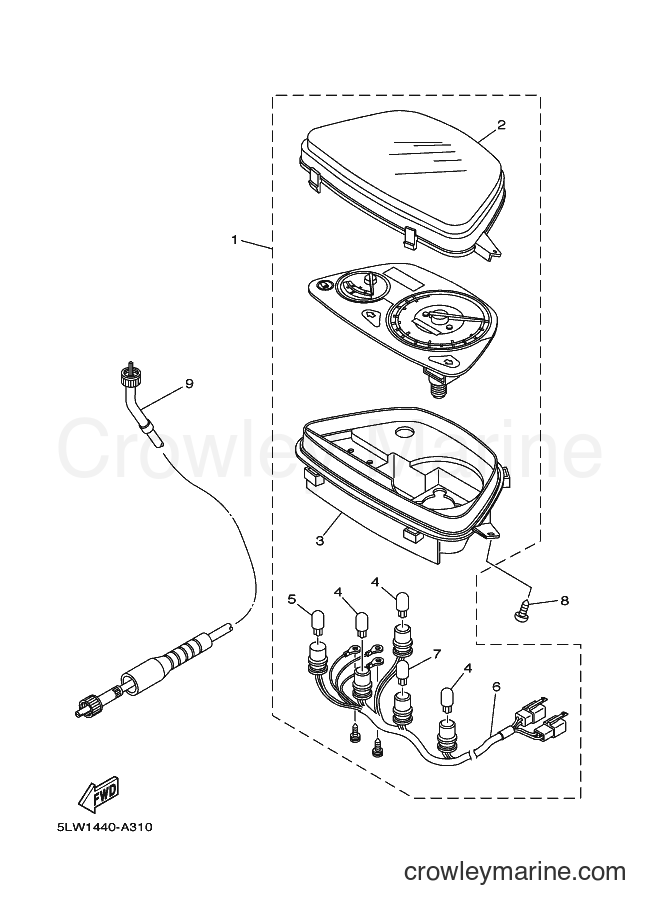

2003 Scooter AT115 - AT115 (5MX4) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors AT115 (5MX4) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, METER LOWER
Price unavailable
4
Required: 3
. BULB, METER (T10 12V-3.4W)
Price unavailable
5
Required: 1
. BULB, METER (T10 12V-1.7W)
Price unavailable
6
Required: 1
. SOCKET CORD ASSY
Price unavailable
7
Required: 1
. BULB, METER (T10 12V-1.7W)
Price unavailable
9
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
