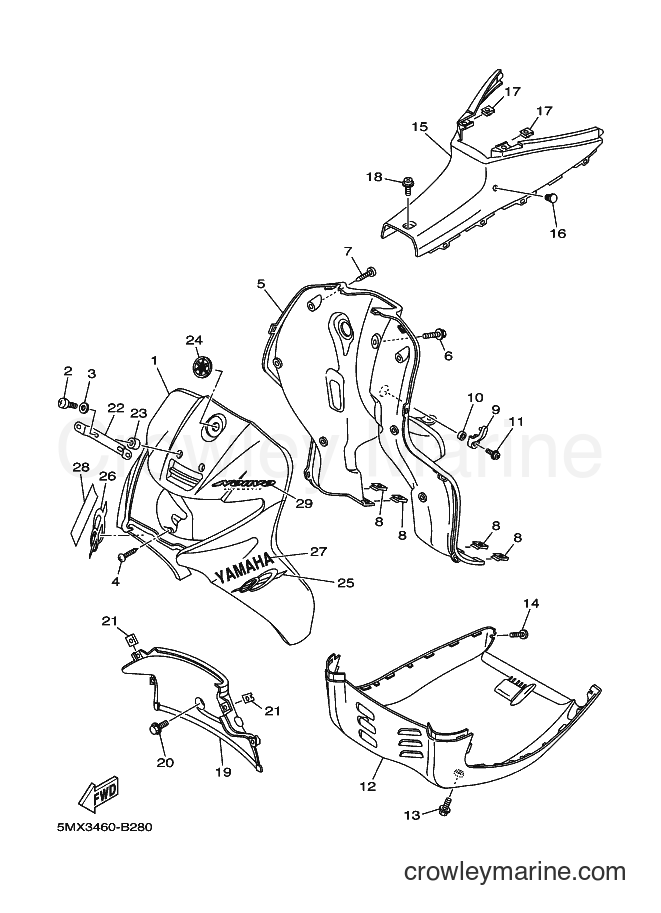

2003 Scooter AT115 - AT115 (5MX3) [010] LEG SHIELD diagram
![Yamaha Motors AT115 (5MX3) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/CEexguEu.png)
1
Required: 1
LEG SHIELD 1
Price unavailable
2
Yamaha Motors
Pan Head Screw98517-06025-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98507-06025-00
$3.44
You save $0.61
3
Yamaha Motors
Plate Washer92907-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$0.85
You save $0.15
4
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42
5
Required: 1
LEG SHIELD 2
Price unavailable
6
Yamaha Motors
Screw with Washer90159-06181-00
Required: 1
SCREW, WITH WASHER
$3.40
You save $0.60
7
Yamaha Motors
Truss Screw97707-50014-00
Required: 6
SCREW, TAPPING
$8.07
You save $1.42
8
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
9
Required: 1
HOOK 1
Price unavailable
10
Required: 1
COLLAR
Price unavailable
11
Yamaha Motors
Screw with Washer90159-06181-00
Required: 1
SCREW, WITH WASHER
$3.40
You save $0.60
12
Required: 1
COVER, LOWER
Price unavailable
13
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
14
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42
15
Required: 1
COVER 2
Price unavailable
$5.52
You save $0.97
17
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
18
Yamaha Motors
Screw with Washer90159-06060-00
Required: 1
SCREW, WITH WASHER
Supersedes: 90159-06033-00
$8.07
You save $1.42
19
Required: 1
FENDER, INNER
Price unavailable
20
Yamaha Motors
Bolt with Washer90119-06242-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06044-00
$7.22
You save $1.27
21
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.85
You save $0.15
22
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
23
Required: 2
COLLAR
Price unavailable
24
Required: 1
EMBLEM 1
Price unavailable
25
Required: 1
GRAPHIC 1
Price unavailable
26
Required: 1
GRAPHIC 2
Price unavailable
27
Yamaha Motors
YAMAHA EMBLEM99244-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99234-00100-00
$19.54
You save $3.45
28
Yamaha Motors
YAMAHA EMBLEM99244-00100-00
Required: 1
EMBLEM, YAMAHA
Supersedes: 99234-00100-00
$19.54
You save $3.45
29
Required: 1
EMBLEM 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
