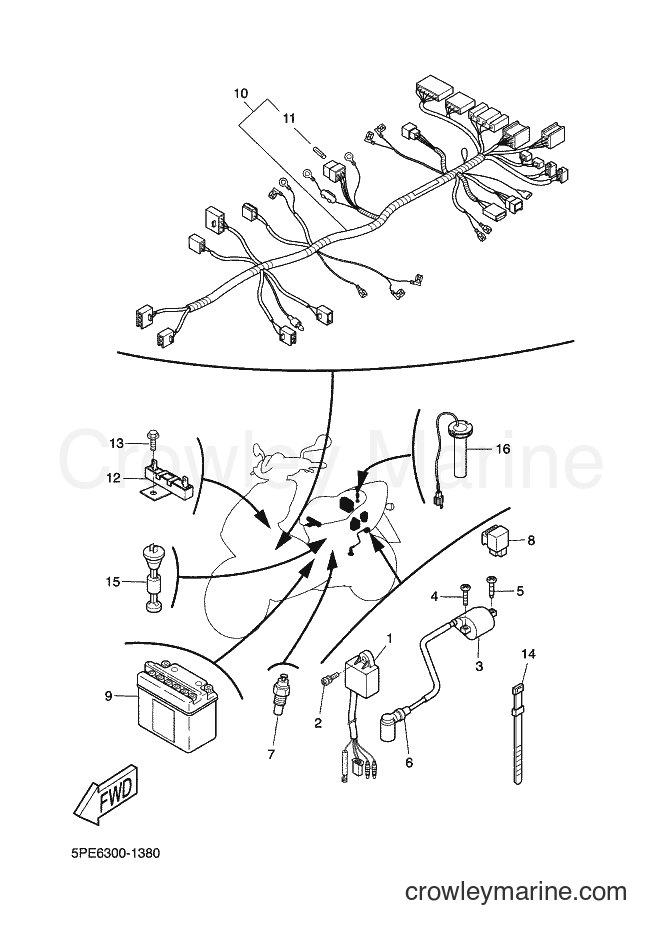

2002 Scooter YQ50 - YQ50 (5PE6) [040] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ50 (5PE6) [040] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
SCREW, BINDING
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Screw
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
BOLT, WASHER BASED
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
7
Required: 1
SENDER, WATER
Price unavailable
Relay Assembly
8
Yamaha Motors
Relay Assembly29U-81950-93-00
Required: 1
RELAY ASSY
Cross Ship
Leaves in 2-5 days
$84.99
$72.24
You save $12.75
More details
9
Required: 1
BATTERY ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
. FUSE
Price unavailable
12
Required: 1
RESISTOR ASSY
Price unavailable
13
Required: 1
BOLT, WASHER BASED
Price unavailable
Switch Cord Band
14
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 4
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Oil Level Gauge Assembly
15
Yamaha Motors
Oil Level Gauge Assembly53L-85720-10-00
Required: 1
OIL LEVEL GAUGE ASSY
Supersedes: 3VL-H5720-10-00
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
16
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
