2002 Scooter YQ100 - YQ100 (5ME6) [060] STEERING HANDLE & CABLE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

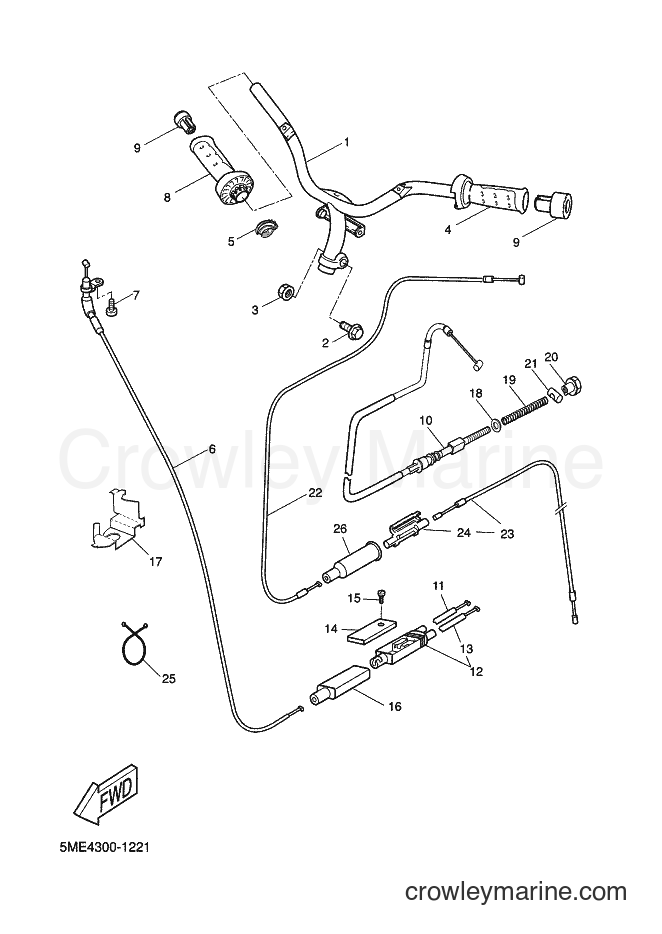

Yamaha Motors YQ100 (5ME6) [060] - STEERING HANDLE & CABLE
Change View:
1
Required: 1
HANDLE COMP.
Price unavailable
Washer Based Bolt
2
Yamaha Motors
Washer Based Bolt90105-10036-00
Required: 1
BOLT, WASHER BASED
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
Self-Locking Nut
3
Yamaha Motors
Self-Locking Nut90185-10154-00
Required: 1
NUT, SELF-LOCKING
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
4
Required: 1
GRIP
Price unavailable
5
Required: 1
ROTOR
Price unavailable
6
Required: 1
CABLE, THROTTLE 1
Price unavailable
7
Required: 1
SCREW
Price unavailable
8
Required: 1
GRIP ASSY
Price unavailable
9
Required: 2
END, GRIP
Price unavailable
10
Required: 1
CABLE, BRAKE
Price unavailable
11
Required: 1
CABLE, THROTTLE 2
Price unavailable
12
Required: 1
CABLE ASSY, THROTTLE & PUMP
Price unavailable
13
Required: 1
CABLE, PUMP
Price unavailable
14
Required: 1
CAP, CABLE CONNECTOR
Price unavailable
15
Required: 1
SCREW, TAPPING
Price unavailable
16
Required: 1
BOOT, CYLINDER
Price unavailable
17
Required: 1
HOLDER
Price unavailable
Plate Washer
18
Yamaha Motors
Plate Washer90202-08175-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Compression Spring
19
Yamaha Motors
Compression Spring90501-12X00-00
Required: 1
SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$11.49
$9.77
You save $1.72
More details
Special Shape Nut
20
Yamaha Motors
Special Shape Nut90179-06411-00
Required: 1
NUT
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
22
Required: 1
CABLE, STARTER 1
Price unavailable
23
Required: 1
CABLE, STARTER 2
Price unavailable
Connector Cable
24
Yamaha Motors
Connector Cable3VL-F6261-00-00
Required: 1
. CONNECTOR, CABLE
Cross Ship
Leaves in 2-5 days
$14.99
$12.74
You save $2.25
More details
Clip
25
Yamaha Motors
Clip90468-15009-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Rubber Cap
26
Yamaha Motors
Rubber Cap3WG-F6329-00-00
Required: 1
CAP, RUBBER
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
