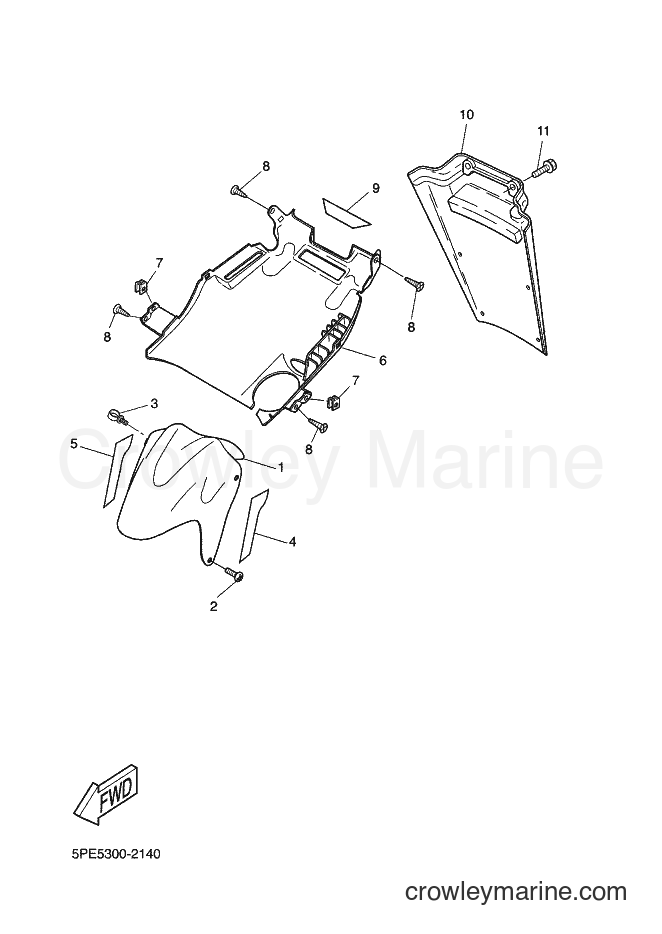

2002 Scooter YQ100 - YQ100 (5ME6) [040] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YQ100 (5ME6) [040] - FENDER
Change View:
1
Required: 1
FENDER, FRONT 2
Price unavailable
1
Required: 1
FENDER, FRONT 2
Price unavailable
2
Required: 4
SCREW, PAN HEAD
Price unavailable
3
Required: 1
HOLDER, CABLE
Price unavailable
4
Required: 1
GRAPHIC 1
Price unavailable
4
Required: 1
GRAPHIC 1
Price unavailable
5
Required: 1
GRAPHIC 2
Price unavailable
5
Required: 1
GRAPHIC 2
Price unavailable
6
Required: 1
GUARD, MUD
Price unavailable
Spring Nut
7
Yamaha Motors
Spring Nut90183-05X03-00
Required: 2
NUT, SPRING
Supersedes: 90183-05X00-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 4
SCREW, TAPPING
Price unavailable
9
Required: 1
EMBLEM 3
Price unavailable
10
Required: 1
GUARD, FLAP
Price unavailable
11
Required: 2
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
