2002 Scooter YP150E - YP150E (5NS6) [010] FRONT BRAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

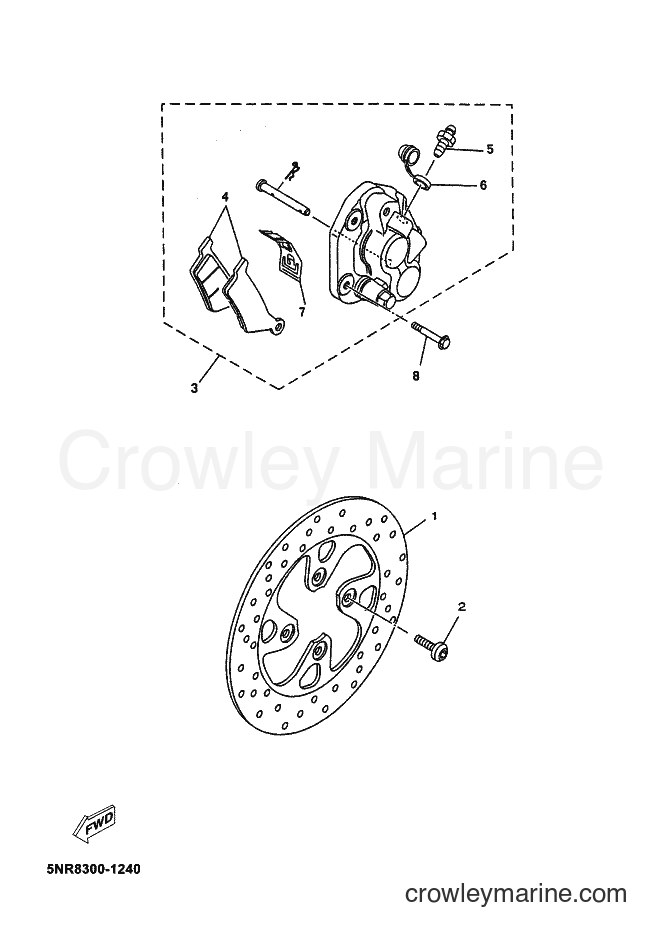

Yamaha Motors YP150E (5NS6) [010] - FRONT BRAKE
Change View:
1
Required: 1
DISC, BRAKE (RIGHT)
Price unavailable
Screw (M8 X 40)
2
Yamaha Motors
Screw (M8 X 40)90111-08834-00
Required: 4
SCREW
Supersedes: 90149-08814-00
Cross Ship
Leaves in 2-5 days
$1.90
$1.61
You save $0.28
More details
3
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
4
Required: 2
. PAD, CALIPER 2
Price unavailable
5
Required: 1
. SCREW, BLEED
Price unavailable
6
Required: 1
. CAP
Price unavailable
7
Required: 1
. SUPPORT, PAD
Price unavailable
8
Required: 2
BOLT, FLANGE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
