2002 Scooter YN50 - YN50 (5RNF) [010] INTAKE diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

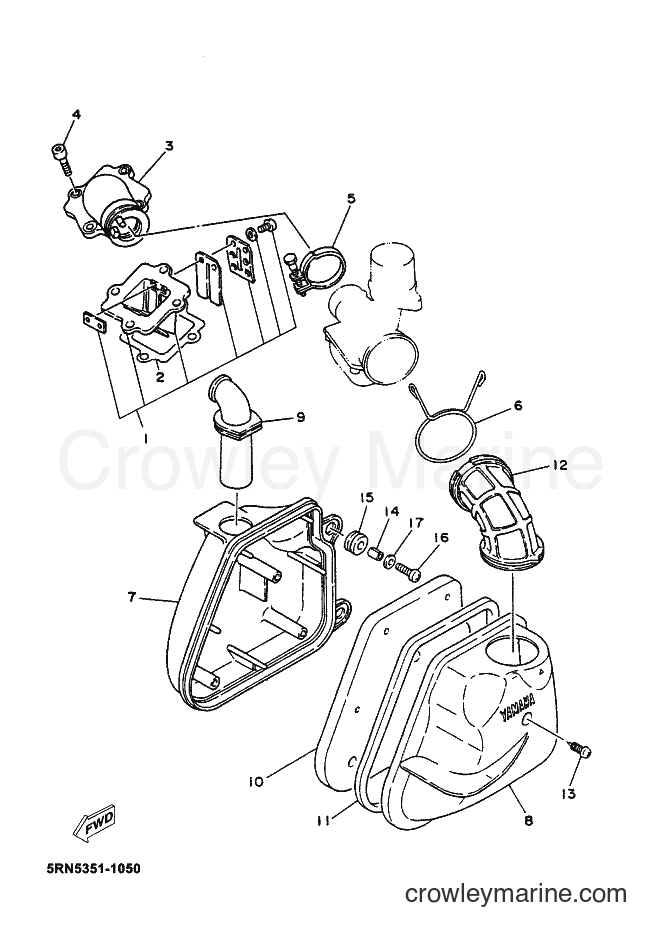

Yamaha Motors YN50 (5RNF) [010] - INTAKE
Change View:
1
Required: 1
REED VALVE ASSY
Price unavailable
2
Required: 1
GASKET, VALVE SEAT
Price unavailable
3
Required: 1
MANIFOLD, INTAKE
Price unavailable
Hexagon Socket Head Bolt
4
Yamaha Motors
Hexagon Socket Head Bolt90110-06X03-00
Required: 4
BOLT, HEXAGON SOCKET HEAD
Cross Ship
Leaves in 2-5 days
Price unavailable
More details
5
Required: 1
HOSE CLAMP ASSY
Price unavailable
Scissor Clip
6
Yamaha Motors
Scissor Clip90467-24140-00
Required: 1
CLIP
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
7
Required: 1
CASE, AIR CLEANER 1
Price unavailable
8
Required: 1
CAP, CLEANER CASE 1
Price unavailable
9
Required: 1
DUCT
Price unavailable
10
Required: 1
ELEMENT, AIR CLEANER
Price unavailable
11
Required: 1
SEAL
Price unavailable
12
Required: 1
JOINT, AIR CLEANER 1
Price unavailable
13
Required: 3
SCREW, TAPPING
Price unavailable
COLLAR
14
Yamaha Motors
COLLAR90387-067V1-00
Required: 2
COLLAR
Supersedes: 90387-06X06-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
15
Required: 2
GROMMET
Price unavailable
16
Required: 2
SCREW, PAN HEAD
Price unavailable
17
Required: 2
WASHER, PLATE
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
