All diagrams for this model

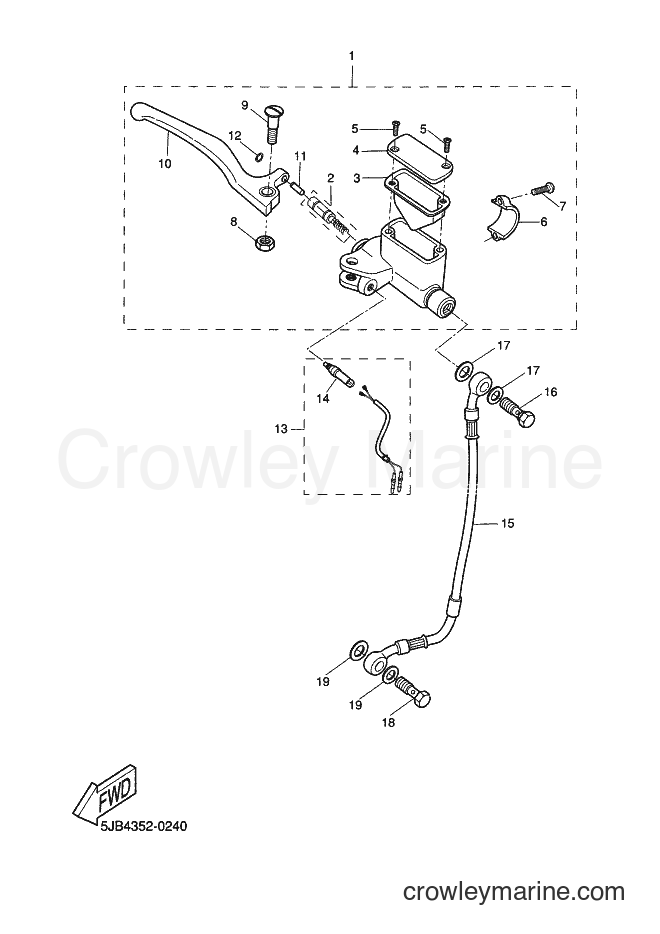

2002 Scooter YH50 - YH50 (5PF4) [020] FRONT MASTER CYLINDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5PF4) [020] - FRONT MASTER CYLINDER
Change View:
1
Required: 1
MASTER CYLINDER ASSY
Price unavailable
2
Required: 1
. MASTER CYLINDER SUB ASSY
Price unavailable
3
Required: 1
. DIAPHRAGM, RESERVOIR
Price unavailable
4
Required: 1
. CAP, RESERVOIR
Price unavailable
5
Required: 2
. SCREW
Price unavailable
6
Required: 1
. BRACKET, MASTER CYLINDER
Price unavailable
8
Required: 1
. NUT, LEVER FITTING
Price unavailable
9
Required: 1
. SCREW, LEVER FITTING
Price unavailable
10
Required: 1
. LEVER 2
Price unavailable
11
Required: 1
. PIN, PAD
Price unavailable
12
Required: 1
. CLIP
Price unavailable
FRONT STOP SWITCH ASSY
13
Yamaha Motors
FRONT STOP SWITCH ASSY5JH-H3980-01-00
Required: 1
FRONT STOP SWITCH ASSY
Supersedes: 5JH-H3980-00-00
Cross Ship
Leaves in 2-5 days
$28.99
$24.64
You save $4.35
More details
14
Required: 1
. FRONT STOP SWITCH ASSY
Price unavailable
15
Required: 1
HOSE, BRAKE 1
Price unavailable
Union Bolt
16
Yamaha Motors
Union Bolt90401-10X01-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Plain Washer
17
Yamaha Motors
Plain Washer90201-10X03-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Union Bolt
18
Yamaha Motors
Union Bolt90401-10X01-00
Required: 1
BOLT, UNION
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Plain Washer
19
Yamaha Motors
Plain Washer90201-10X03-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
