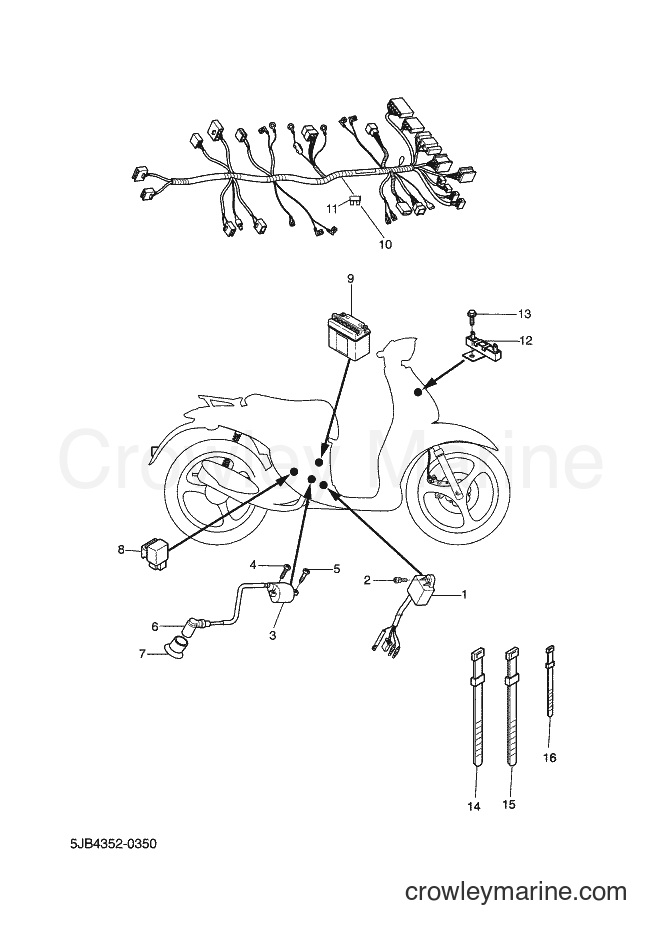

2002 Scooter YH50 - YH50 (5PF4) [020] ELECTRICAL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YH50 (5PF4) [020] - ELECTRICAL 2
Change View:
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BOLT, HEXAGON SOCKET HEAD
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
Hexagon Screw
4
Yamaha Motors
Hexagon Screw90153-06034-00
Required: 1
SCREW, HEXAGON
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
5
Required: 1
BOLT, WASHER BASED
Price unavailable
6
Required: 1
PLUG CAP ASSY
Price unavailable
Plug Cap Seal
7
Yamaha Motors
Plug Cap Seal3WG-H2372-00-00
Required: 1
SEAL, PLUG CAP
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
RELAY ASSY
Price unavailable
9
Required: 1
BATTERY ASSY
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 1
. FUSE
Price unavailable
12
Required: 1
RESISTOR ASSY
Price unavailable
13
Required: 1
SCREW, BINDING
Price unavailable
Switch Cord Band
14
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 2
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
15
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 5
BAND, SWITCH CORD
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Switch Cord Band
16
Yamaha Motors
Switch Cord Band4KH-H3936-01-00
Required: 1
BAND, SWITCH CORD
Supersedes: 4VU-H3936-01-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
