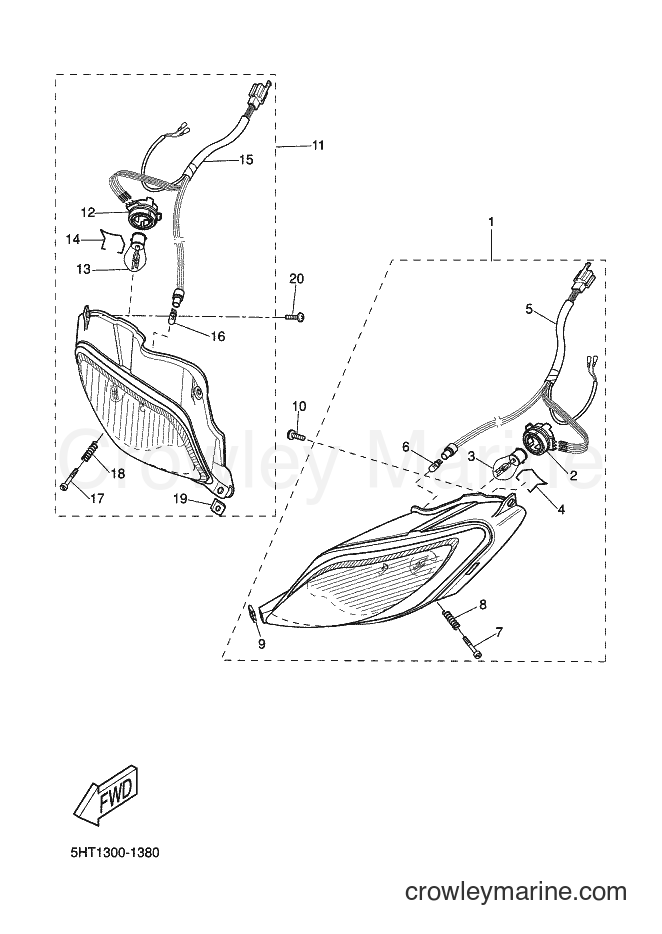

2002 Scooter XQ125 - XQ125 (5HT4) [040] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XQ125 (5HT4) [040] - HEADLIGHT
Change View:
1
Required: 1
HEADLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. HOLDER, SOCKET
Price unavailable
3
Required: 1
. BULB, HEADLIGHT
Price unavailable
4
Required: 1
. SPRING, REFLECTOR
Price unavailable
5
Required: 1
. WIRE, LEAD 1
Price unavailable
6
Required: 1
. BULB (12V-5W)
Price unavailable
7
Required: 1
. SCREW, RIM ADJUSTER
Price unavailable
8
Required: 1
. SPRING
Price unavailable
9
Required: 1
. NUT, EMBLEM
Price unavailable
Tapping Screw
10
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details
11
Required: 1
HEAD LIGHT UNIT ASSY 2
Price unavailable
12
Required: 1
. HOLDER, SOCKET
Price unavailable
13
Required: 1
. BULB, HEADLIGHT
Price unavailable
14
Required: 1
. SPRING, REFLECTOR
Price unavailable
15
Required: 1
. WIRE, LEAD 2
Price unavailable
16
Required: 1
. BULB (12V-5W)
Price unavailable
17
Required: 1
. SCREW, RIM ADJUSTER
Price unavailable
18
Required: 1
. SPRING
Price unavailable
19
Required: 1
. NUT, EMBLEM
Price unavailable
Tapping Screw
20
Yamaha Motors
Tapping Screw90167-05X01-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$4.15
$3.53
You save $0.62
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
